Description

Introduction Class II A2 Biosafety Cabinet

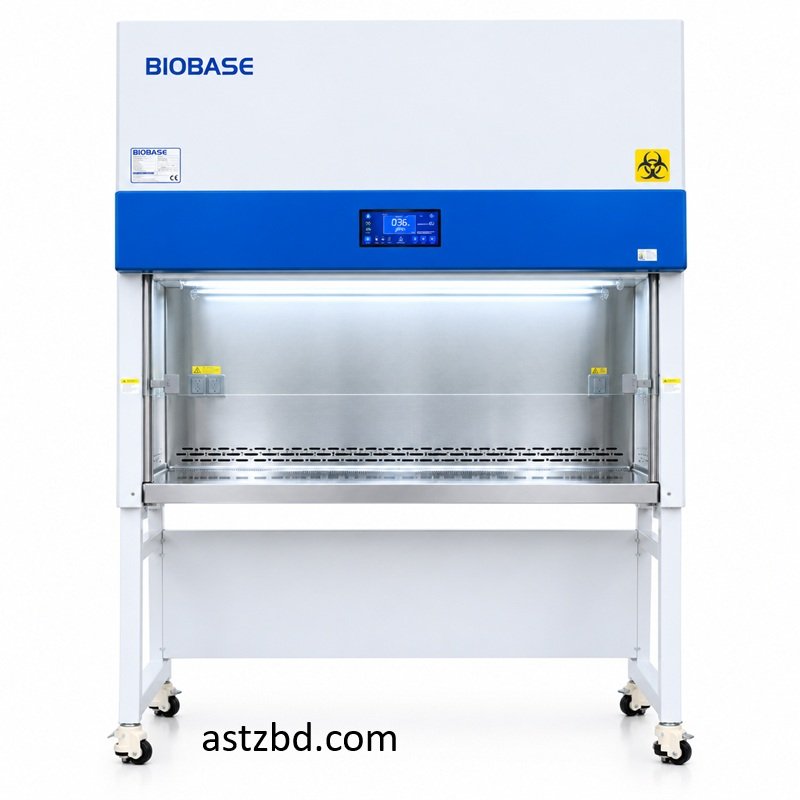

The Biobase BSC-4FA2-NA Class II A2 Biosafety Cabinet creates a protected workspace for the operator, the sample and the laboratory. This NSF certified 4-foot workstation pulls room air through the front grille and filters it with two HEPA filters. Moreover, the airflow system recirculates 70% of the air and exhausts the other 30%. The front window stops at a 254 mm (10-inch) safe working height. A 7-inch color touch display shows airflow, filter life and alarms in real time. Biobase Scientific manufactures the cabinet in China for microbiology, cell culture and clinical testing. Stainless steel 304 lines the work area, so technicians clean it quickly.

Technical Specifications biosafety cabinet price in Bangladesh

Specification	Details
Brand	Biobase
Model	BSC-4FA2-NA
Type	Class II Type A2 biosafety cabinet
Standard	NSF/ANSI 49 certified
Cabinet Width	4 feet
External Dimensions (W×D×H)	1383 × 775 × 2295 mm
Internal Work Area (W×D×H)	1210 × 600 × 660 mm
Safe Sash Height	254 mm (10 in)
Air Pattern	70% recirculation, 30% exhaust
Inflow Velocity	0.53 m/s (100–110 fpm)
Downflow Velocity	0.33 m/s (60–70 fpm)
Inflow Volume	Approx. 462 m³/h (272 cfm)
HEPA Filters	Two filters, 99.995% efficiency at 0.3 μm, with filter life indicator
Front Window	Motorized, with interlocks to the UV lamp and blower
Display	7-inch color touch screen
Fan	EC fan with automatic airflow adjustment
Lighting and Sterilization	LED lamp and UV lamp with programmable timer
Work Area Material	304 stainless steel, single-piece side and back walls
Body Material	Cold-rolled steel with antibacterial powder coating
Base	Separate base with adjustable height
Front Design	10° slanted front panel
Alarms	Abnormal airflow, filter replacement, unsafe window height, high filter pressure, power failure
Safety Functions	Power-on password, scheduled start/stop timer, memory function after power failure
Noise Level	≤ 67 dB
Power Supply	AC 220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz
Full Load Current	9 A
Heat Output	1689 BTU/hr (approx. 500 W)
Manufacturer	Biobase Scientific (Shandong) Co., Ltd.
Country of Origin	China



Key Features Biobase BSC-4FA2-NA

1. The three-layer airflow barrier shields the operator, the sample and the lab environment.
2. Two HEPA filters clean both the supply air and the exhaust air.
3. In addition, the motorized front window glides to the safe height with a single touch.
4. The 7-inch color touch display presents real-time airflow and runtime data.
5. The EC fan adjusts airflow automatically, so velocity stays stable as the filters load.
6. Audible and visual alarms flag abnormal airflow, high filter pressure and unsafe window height.
7. Technicians remove the integrated work area easily, which simplifies deep cleaning.
8. Furthermore, a power-on password blocks unauthorized use.
9. The memory function restores the previous state after a power failure.
10. The adjustable base lets the lab match the cabinet height to its operators, so users work comfortably for long hours.

Who Uses This 4 feet safety workstation

1. Clinical laboratories handle blood, urine and swab samples inside the cabinet.
2. Medical colleges and universities train students in sterile technique with it.
3. Diagnostic centers prepare PCR and culture samples in the clean workspace.
4. Biotech and pharmaceutical firms run cell culture and quality tests.
5. Moreover, government research institutes use it for microbiology and molecular biology studies.
6. Similarly, food and water testing labs rely on it for contamination checks.

Applications NSF certified biosafety cabinet

1. Technicians grow cell lines and tissue cultures under sterile downflow air.
2. Microbiologists inoculate, streak and subculture bacterial samples.
3. Moreover, molecular biology teams set up PCR reactions without cross-contamination.
4. Clinical staff process specimens that carry moderate-risk agents.
5. Researchers prepare vaccine and biologic samples during development.
6. Finally, trainers demonstrate aseptic technique in teaching laboratories.
7. However, the cabinet does not suit volatile toxic chemicals or radionuclides, so labs use a Class II B2 cabinet for those tasks.

Frequently Asked Questions / FAQ Class II A2 Biosafety Cabinet

Q1. What does a Class II A2 biosafety cabinet do?
It protects the operator, the sample and the environment during work with moderate-risk biological agents. Moreover, it recirculates 70% of the filtered air and exhausts 30%.

Q2. What are the dimensions of the Biobase BSC-4FA2-NA?
It measures 1383 × 775 × 2295 mm outside and offers a 1210 × 600 × 660 mm work area.

Q3. Which sash height does this cabinet use?
It uses a 254 mm (10-inch) safe working height.

Q4. What power supply does it need?
It runs on AC 220V ±10% at 50/60 Hz or 110V ±10% at 60 Hz, and it draws 9 A at full load. Please confirm your local supply before ordering.

Q5. Can I use volatile solvents inside it?
No. Volatile toxic chemicals and radionuclides need a Class II B2 total-exhaust cabinet.

Q6. How often should I certify the cabinet?
Most labs certify it every year. They also recertify after each relocation or HEPA filter change.

Q7. Does astzbd deliver across Bangladesh?
Yes, astzbd delivers to Dhaka, Chattogram and other districts. Contact the sales team for the latest price and delivery time.

Why Buy From astzbd biosafety cabinet price in Bangladesh

1. astzbd supplies genuine Biobase laboratory equipment with proper documentation.
2. The team quotes competitive prices for hospitals, universities and private labs.
3. Fast delivery reaches every district of Bangladesh.
4. Technicians guide your staff through installation and first-time operation.
5. The after-sales team answers service and spare part requests quickly.
