Introduction imada fb series 30 kg push-pull scale

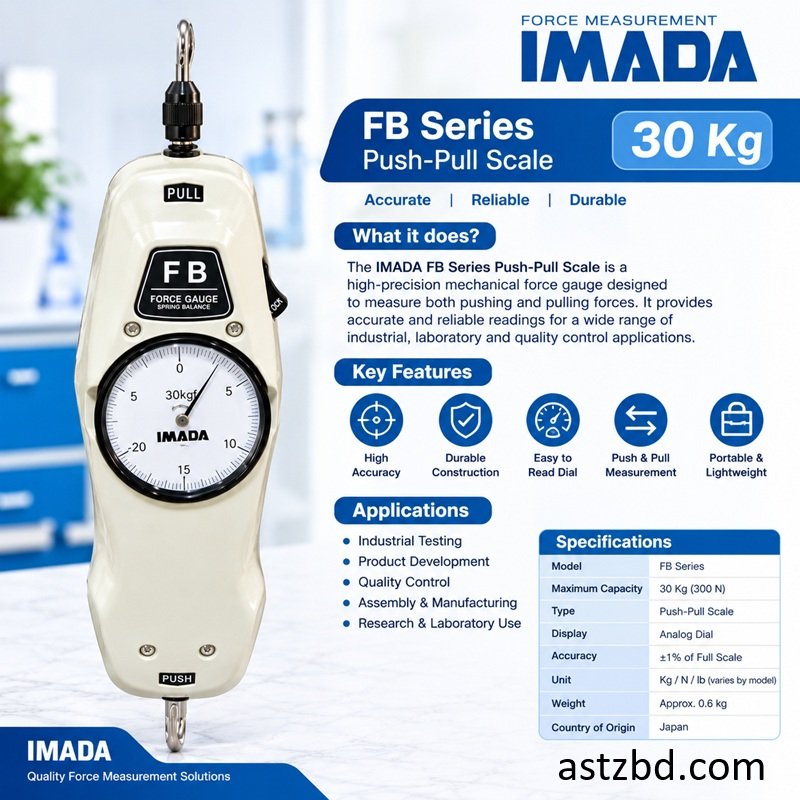

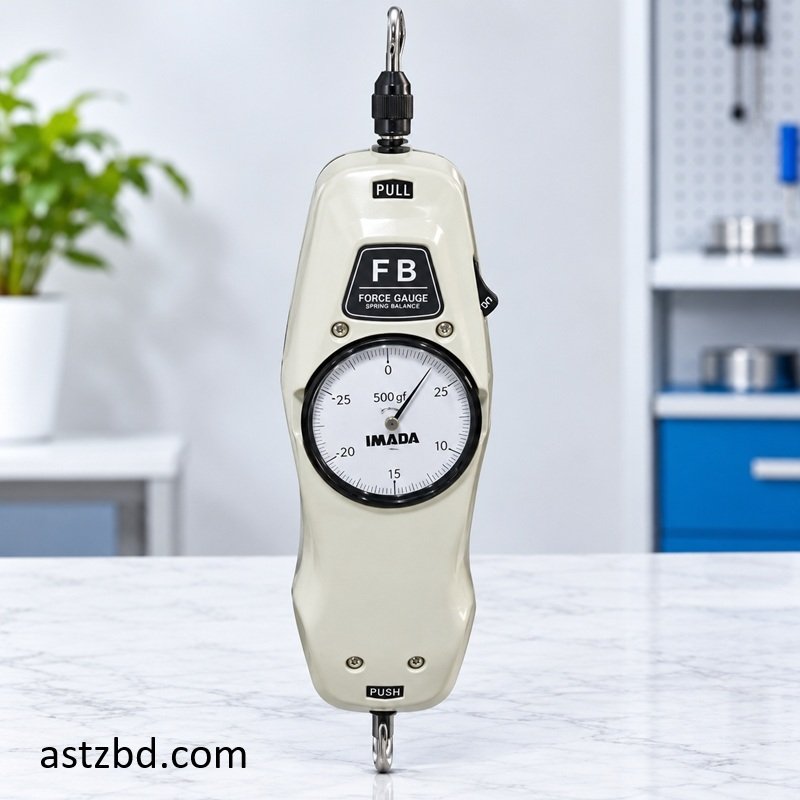

Imada FB series 30 kg push-pull scale is the mechanical force gauge that measures push and pull force up to 30 kgf. The scale reads force through a precise spring and shows the value on a clear dial. Therefore, quality teams get a fast reading without batteries or cables. Garment factories, labs and workshops use it to test buttons, snaps, zippers and seams. A follower pointer holds the highest force after each test. For this reason, operators read the result after the pull ends. The scale also mounts on test stands for straight and repeatable pulls. Moreover, its rugged body survives daily shop-floor use. Interchangeable attachments let users adapt the scale to each test.

Specifications imada fb series force gauge

• Specification	Details
  Product Name	Imada FB Series 30 Kg Push-Pull Scale
  Type	Mechanical Dial Push-Pull Scale
  Capacity	30 kgf (Approx. 294 N)
  Graduation	0.2 kgf
  Accuracy	±2% of Full Scale
  Display	Analog Dial with Follower Pointer
  Force Units	kgf and N
  Measuring Directions	Push and Pull
  Attachments	Hook, Flat, Cone and Notch Tips
  Body Material	Metal Case
  Power Supply	Not Required
  Size	170 × 65 × 60 mm
  Weight	0.4 kg
  Country of Origin	Japan

Key Features imada fb series 30 kg push-pull scale

1. The clear dial shows force readings without any power source.
2. The follower pointer holds the highest force of every test.
3. In addition, the scale measures both push and pull force.
4. The rugged metal body handles daily factory use.
5. As a result, operators get simple and repeatable readings.

Who Uses This imada fb series 30 kg push-pull scale

1. Garment factories test button strength before they ship orders.
2. Quality control teams check supplier trims with it.
3. Moreover, buying houses verify buyer requirements with it.
4. Workshops measure spring force and switch pressure with it.
5. Universities also train engineering students with it.

Applications force gauge for button pull test

1. Factories test button pull force and snap fastener strength.
2. Labs measure zipper pull force and seam strength.
3. Teams also test spring force and latch pressure.
4. Engineers check packaging tear and peel force with it.
5. Consequently, buyers reject weak products before production.

Frequently Asked Questions / FAQ imada fb series 30 kg push-pull scale

Q1. What is the Imada FB series 30 kg push-pull scale?
It is a mechanical force gauge that measures push and pull force up to 30 kgf. It shows the result on a dial.

Q2. What can I measure with it?
You can measure button pull, zipper strength, seam force and spring force. However, you must attach the correct tip for each test.

Q3. Does it need a battery?
No, the scale works with a spring and a dial. Therefore, you can use it anywhere.

Q4. Does it show peak force?
Yes, the follower pointer stays at the highest force. Reset it after each test.

Q5. Does astzbd deliver across Bangladesh?
Yes, astzbd delivers to all districts. Moreover, the team packs the scale carefully.

Q6. Does the scale need calibration?
Yes, calibrate it once a year for accurate results. Schedule a service check regularly.

Why Buy From astzbd imada fb series force gauge

1. astzbd supplies genuine testing equipment for Bangladesh.
2. The team inspects every scale before dispatch.
3. Customers get fast delivery across Bangladesh.
4. Additionally, the support team answers technical questions quickly.
5. Buyers, therefore, save time on sourcing lab equipment.
