Description

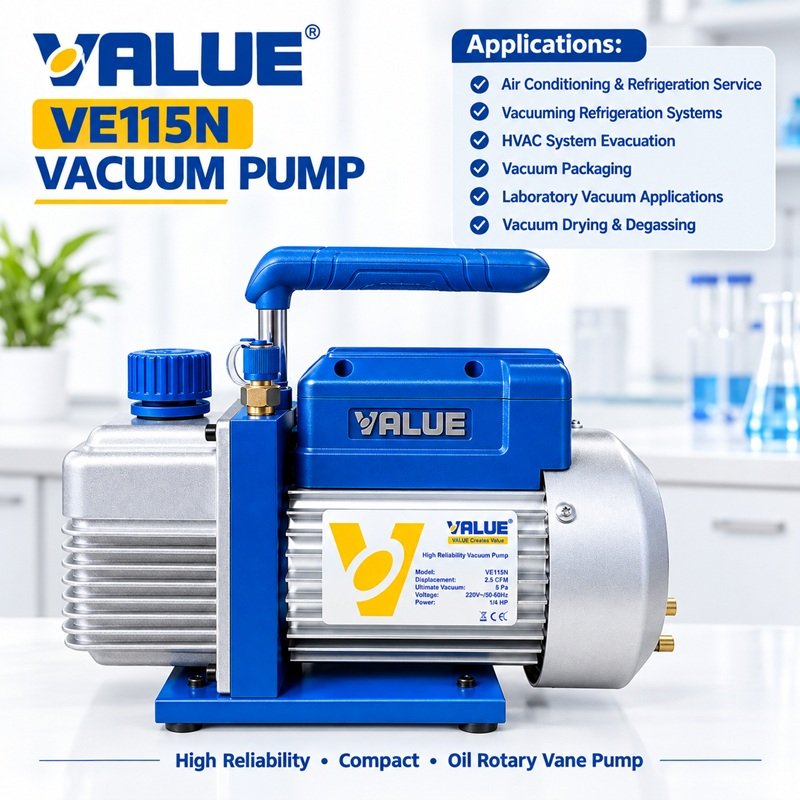

Introduction Value VE115N Vacuum Pump

The Value VE115N Vacuum Pump solves the single biggest problem in air conditioning work: trapped moisture and air inside the refrigerant line. Moisture forms acid blocks the capillary tube, and kills the compressor within months. Therefore, every professional installation starts with a proper evacuation. This 1/4HP single-stage rotary vane pump pulls the system down to 150 microns and clears that moisture completely.

VALUE builds this pump for daily field work. The integrated aluminium body keeps the weight at just 6.6 kg, so one technician carries it up a staircase without help. A forced oil-cycling system feeds clean oil to the vane chamber, and the large oil screen filters debris before it damages the rotor. As a result, the pump holds its ultimate vacuum for years. Value VE115N Vacuum Pump



Technical Specifications VE115N single stage vacuum pump

Specification	Detail
Brand	VALUE
Model	VE115N
Product type	Single stage rotary vane vacuum pump
Motor power	1/4 HP (150 W)
Voltage	220–240 V
Frequency	50 Hz / 60 Hz
Flow rate at 50 Hz	1.8 CFM (51 L/min)
Flow rate at 60 Hz	2.0 CFM (57 L/min)
Ultimate vacuum (partial pressure)	2 Pa
Ultimate vacuum (total pressure)	150 micron
Motor speed	1400 rpm (50 Hz) / 1720 rpm (60 Hz)
Inlet port	1/4″ SAE flare
Oil capacity	250 ml
Oil type	Mineral vacuum pump oil (ISO VG 68 grade)
Number of stages	Single stage
Body material	Integrated aluminum alloy casting
Oil system	Forced oil cycling with large oil screen
Oil drain	Quick drain valve
Cooling	Air cooled with motor fan
Dimensions (L×W×H)	290 × 124 × 224 mm
Net weight	6.6 kg
Gas ballast	Not included on this model
Suitable refrigerants	R22, R134a, R410A, R32, R404A, R407C, R600a
Country of origin	China
Warranty	Seller warranty as per astzbd policy
Package contents	Vacuum pump, oil bottle, dust cap, user manual



Key Features 1/4 HP AC vacuum pump price in Bangladesh

1. Strong 1/4HP motor — The 150W motor drives the rotor at full speed and starts reliably even on low voltage.
2. 0 CFM free air displacement — The pump moves 57 L/min at 60Hz and 51 L/min at 50Hz, so it evacuates a 1.5-ton split AC in minutes.
3. 150-micron ultimate vacuum — The single-stage rotary vane design reaches 2 Pa partial pressure and removes bound moisture.
4. Integrated body structure — One-piece aluminum casting removes joint leaks and cuts the total weight to 6.6 kg.
5. Forced oil cycling system — The pump circulates oil under pressure, therefore the vanes stay lubricated during long runs.
6. Large oil screen — A wide filter screen traps particles and protects the pump chamber.
7. Wide oil sight glass — Technicians read the oil level instantly and top up before damage starts.
8. Quick oil drain valve — The drain empties contaminated oil fast and keeps service downtime short.
9. 1/4″ SAE flare inlet — The standard port fits every common manifold gauge set sold in Bangladesh.
10. Low noise operation — The balanced rotor runs quietly, so indoor jobs stay comfortable.
11. Cooling fan and handle — The fan controls motor temperature and the moulded handle makes transport easy.

Who Uses This 2 CFM refrigeration vacuum pump

1. HVAC technicians install and service split, cassette, and window air conditioners every day.
2. Refrigeration mechanics repair deep freezers, chest coolers, and display chillers.
3. Automotive AC workshops evacuate car air conditioning circuits before recharging gas.
4. Electronics and lab technicians use the pump for small vacuum chambers and degassing work.
5. Building maintenance teams handle in-house AC servicing in hotels, hospitals, and offices.
6. AC importers and dealers commission new units during customer handover.
7. Vocational training institutes teach refrigeration practical’s with a safe 220V bench pump.
8. Resin casting and vacuum bagging hobbyists degas epoxy and pull small vacuum bags.

Applications Value vacuum pump BD

1. Evacuating split AC line sets before a gas charge
2. Servicing window and cassette air conditioners
3. Repairing deep freezers, refrigerators, and bottle coolers
4. Commissioning VRF and mini chiller indoor units
5. Removing moisture from automotive AC systems
6. Degassing epoxy resin and silicone for casting work
7. Pulling vacuum in small laboratory chambers and desiccators
8. Vacuum bagging for composite and woodwork projects
9. Leak testing refrigerant circuits with a micron gauge
10. Training and demonstration in technical institutes



Why Buy From astzbd Value VE115N Vacuum Pump

1. astzbd supplies 100% genuine VALUE products. The team sources stock through verified import channels, so you avoid low-quality copies.
2. We hold real stock in Bangladesh. You receive the pump quickly instead of waiting weeks for an overseas order.
3. Our price stays competitive. astzbd sells at a fair market rate and publishes the price openly.
4. We deliver nationwide. Couriers reach Dhaka, Chattogram, Sylhet, Khulna, Rajshahi, and every district town.
5. Our technical team answers your questions. Ask about CFM, oil grade, or hose fitting before you order, and we guide you honestly.
6. We test each unit before dispatch. Therefore, your pump arrives working and ready for the job.
7. We supply spares and vacuum oil. Buy replacement oil and accessories from the same shop later.
8. We serve trade buyers. Workshops, contractors, and institutes get bulk pricing and proper invoices.

Frequently Asked Questions VE115N single stage vacuum pump

Q1. Does the Value VE115N Vacuum Pump suit a 1.5-ton split AC?
Yes. The 2 CFM capacity evacuates a standard 1 to 2-ton split AC comfortably within 15 to 30 minutes.

Q2. Which oil does this pump need?
It needs mineral vacuum pump oil, usually ISO VG 68 grade. Never pour engine oil into the pump, because engine oil raises the ultimate pressure and damages the vanes.

Q3. How much oil does the pump hold?
The chamber holds 250 ml. Fill the oil to the middle of the sight glass and stop there. Value VE115N Vacuum Pump

Q4. How often should I change the oil?
Change it after every long job, or whenever the oil turns cloudy. Clean oil protects the vacuum level directly.

Q5. Does it work on Bangladesh 220V power?
Yes. The motor runs on 220–240V at 50Hz, so it connects to any normal household or workshop socket.

Q6. What is the difference between single stage and two stage?
A single stage pump reaches roughly 150 microns and handles routine AC and refrigeration work. A two-stage pump reaches a deeper vacuum and suits laboratory or heavy commercial jobs. Most HVAC technicians in Bangladesh need only the single stage model.

Q7. Which refrigerants does it support?
The pump evacuates systems running R22, R134a, R410A, R32, R404A, R407C, and R600a.

Q8. Does the package include a manifold gauge?
No. The box contains the pump, oil, dust cap, and manual. Buy the manifold gauge set separately, and astzbd stocks matching sets.

Q9. Can I use it to degas epoxy resin?
Yes. Many casters use this pump for small degassing chambers. However, fit a proper vacuum chamber with a gauge and a trap first.

Q10. How heavy is the pump?
It weighs 6.6 kg, so a single technician carries it to rooftop and high-floor sites easily. Value VE115N Vacuum Pump
