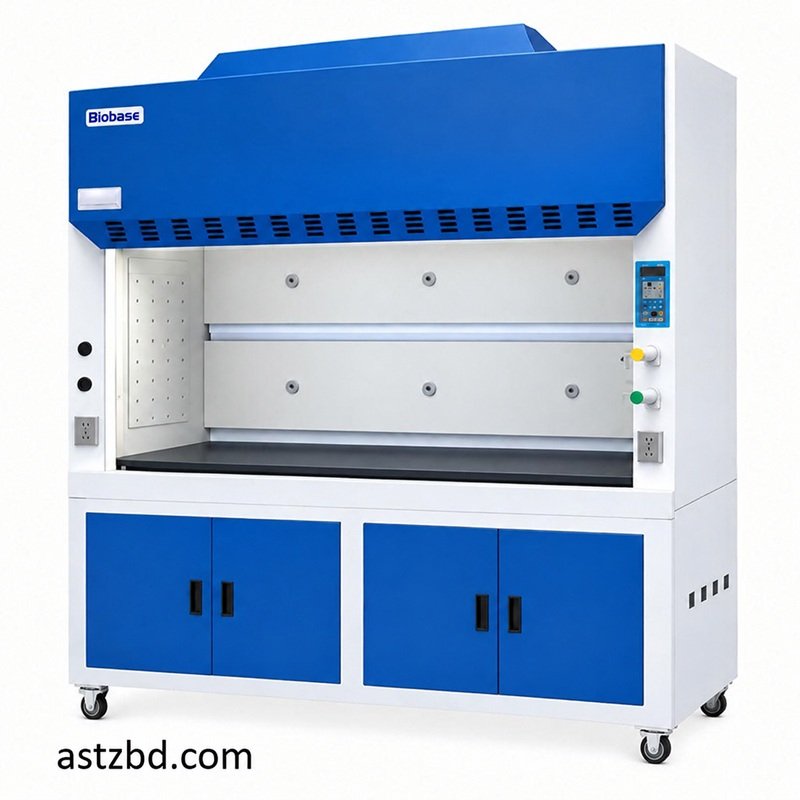

Introduction Biobase Ducted Fume Hood FH1000(A)

Biobase Ducted Fume Hood FH1000(A) gives Bangladeshi laboratories a dependable way to remove harmful vapors at the source. The hood pulls room air through the front opening and sends it outdoors through a PVC duct. Therefore, toxic fumes, corrosive gases and aerosols stay away from the operator. A built-in centrifugal blower drives the airflow, and nine speed levels let you tune it to each task. The motorized 5 mm toughened glass window lifts to a 520 mm opening. Moreover, a UV lamp sterilizes the work area while an LED lamp lights the interior.

TECHNICAL SPECIFICATIONS biobase fume hood price in Bangladesh

Specification	Detail
Brand	Biobase
Product Name	Ducted Fume Hood
Model	FH1000(A)
Type	Ducted chemical fume hood
External Size (W × D × H)	1040 × 800 × 2200 mm
Internal Size (W × D × H)	820 × 670 × 730 mm
Work Surface Height	850 mm
Max Opening	520 mm
Air Velocity	0.3 to 0.8 m/s
Exhaust Air Volume	590 m³/h
Noise Level	≤ 68 dB
Exhaust Duct	PVC, Φ300 mm, standard length 5 meters
LED Lamp	8 W × 1
UV Lamp	Emission at 253.7 nm for efficient decontamination
Blower	Built-in centrifugal blower, speed adjustable (9 levels)
Front Window	5 mm toughened glass, motorized, height adjustable
Control System	Microprocessor control, LED display, power-failure memory
Power Supply	AC 220 V ±10%, 50/60 Hz
Power Consumption	400 W
Waterproof Sockets	2 sockets, total load 500 W
Exterior Material	Cold-rolled steel with antibacterial powder coating
Interior Material	Compact laminate board, acid and alkali resistant
Work Table	Chemical-resistant phenolic resin
Packing Size (L × W × H)	220 × 104 × 80 cm
Gross Weight	286 kg
Country of Origin	China



Key Features biobase motorized sash fume hood

1. A built-in centrifugal blower pulls fumes away from the operator.
2. Nine speed levels let you adjust the air velocity between 0.3 and 0.8 m/s.
3. The motorized 5 mm toughened glass window adjusts its height with ease.
4. Moreover, the UV lamp sterilizes the work area at 253.7 nm.
5. The microprocessor system keeps your settings after a power cut.
6. In addition, the antibacterial steel body and phenolic resin table resist weak acids and alkalis.

Who Uses This biobase chemical fume hood for laboratory

1. University science departments install it in teaching and research labs.
2. Hospital and diagnostic laboratories use it to handle reagents.
3. Pharmaceutical quality control teams prepare samples inside it.
4. Similarly, environmental testing labs rely on it for hazardous samples.
5. Industrial hygiene teams use it to control airborne chemical exposure.
6. Moreover, school science labs choose it for safe chemical demonstrations.

Applications biobase laboratory fume cupboard with UV lamp

1. Chemists handle acids, alkalis and volatile solvents inside the hood.
2. Analysts prepare samples for chemical testing and quality control.
3. Researchers mix reagents and run small-scale reactions.
4. Furthermore, microbiology teams use the UV lamp to decontaminate the work area.
5. Environmental and materials science labs run fume-generating tests.
6. In addition, teachers demonstrate safe chemical handling to students.

Frequently Asked Questions (FAQ)

Q1. What is Biobase Ducted Fume Hood FH1000(A)?
Biobase Ducted Fume Hood FH1000(A) is a ducted chemical fume hood with 590 m³/h exhaust capacity. Moreover, it draws air through the front opening and sends it outdoors through a duct.

Q2. What size is the hood?
The external size is 1040 × 800 × 2200 mm, and the internal workspace measures 820 × 670 × 730 mm. In addition, the work surface sits at 850 mm, and the window opens up to 520 mm.

Q3. Does the hood come with a duct?
Yes. It includes a Φ300 mm PVC exhaust duct with a standard length of 5 meters. Therefore, you must route the duct outdoors, so plan the layout before installation.

Q4. What power supply does it need?
It runs on AC 220 V ±10% at 50/60 Hz and consumes 400 W. Therefore, it fits the standard Bangladesh electrical supply.

Q5. Can I use strong acids inside it?
The hood resists weak acids and alkalis. However, please contact astzbd before you plan strong acid work, so our team can confirm suitability.

Q6. Does astzbd deliver across Bangladesh?
Yes. astzbd delivers to all major districts and answers installation questions.
