Description

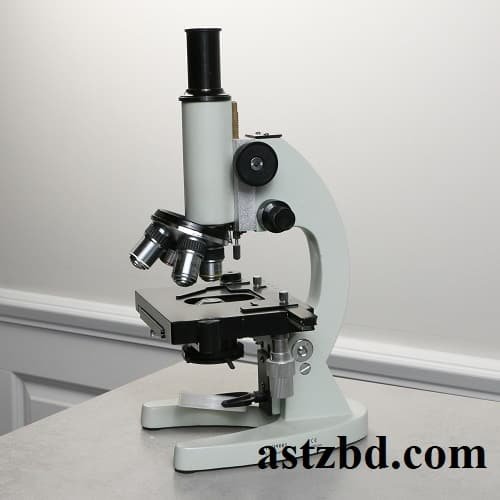

Biological Microscope XSP-13A
| Description | Specification / Details |
|---|---|
| Model No. | XSP-13A |
| Product Name | Monocular Biological Microscope / Student Compound Microscope |
| Other Names | Biological Monocular Microscope, Student Microscope XSP-13A |
| Stereoscopic Effect | Without Stereoscopic Effect (compound optical microscope) |
| Kind of Light Source | Ordinary Light (natural/reflected via concave-plan mirror; some variants include optional LED/electric illuminator) |
| Shape | Rectangular Prism (prism-based monocular tube design) |
| Usage | Research / Education / Student / Laboratory (basic biology, pathology intro) |
| Principle | Optics (brightfield transmitted light) |
| Principle of Optics | Monocular Microscope |
| Viewing Head / Eyepiece Head | Monocular Head (fixed, inclined for comfortable viewing) |
| Eyepieces | Huygens H5X, H10X, H12.5X (interchangeable; wide-field style) |
| Objectives | Achromatic: 10X, 40X (Spring-loaded/S), 100X (Spring-loaded, Oil immersion/S.Oil) |
| Nosepiece | Triple (3-position revolving turret) |
| Stage | Plain Stage with Moving Scale / Mechanical Stage with clips and Vernier scale (for precise slide positioning) |
| Magnification Range | 50X – 1250X (depending on eyepiece + objective combination; e.g., 5X eyepiece × 10X obj = 50X; 12.5X × 100X oil = 1250X) |
| Illumination | Concave-plan reflector mirror (50 mm diameter, natural light; some models offer optional plug-in LED or halogen) |
| Focusing | Coarse & Fine adjustment knobs (coaxial, with tension control) |
| Condenser | Abbe condenser (N.A. 1.25, with iris diaphragm for light control) |
| Other Features | Dust cover compatible, basic accessories (often includes immersion oil, lens paper) |
| Country of Origin | China (OEM from various manufacturers) Biological Microscope XSP-13A |
| Microscope MCS-13A | |
| Objectives | 10X,40X(S),100X(S.OIL) |
| Eyepiece | 5X,10X,12.5X |
| Eyepiece head | Monocular head |
| Nosepiece | Triple |
| Stage | Stage+moving scale |
| Illumination | Reflecting mirror(insert illumination for option) |
