Description

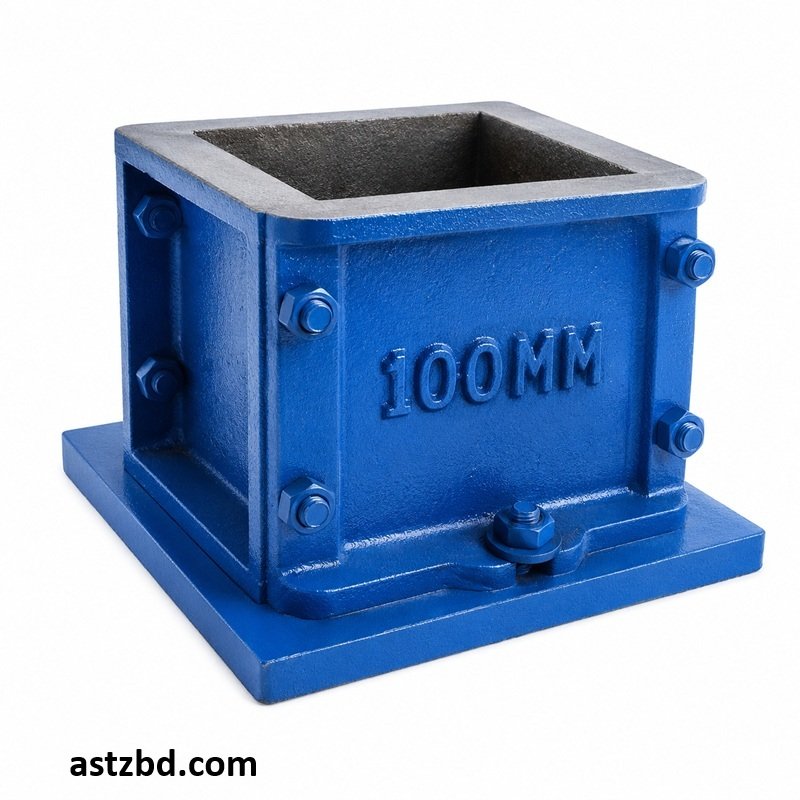

Introduction Concrete Test Cube Mold

Construction laboratories across Bangladesh depend on a sturdy Concrete Test Cube Mold 100mm to prepare accurate specimens for compressive strength testing. This cast iron mould shapes fresh concrete into precise 100mm cubes, and engineers use these cubes to verify concrete quality before structural approval. The mould features thick, rigid walls that resist deformation during compaction, so technicians achieve consistent cube dimensions every time. Site engineers rely on this equipment for routine quality checks, and testing laboratories use it for standard compliance verification. ASTZBD supplies this precision testing mould directly to construction companies, ready-mix plants, and civil engineering laboratories throughout Bangladesh.

Specifications Concrete Test Cube Mold

Parameter	Specification
Product Name	Concrete Test Cube Mold
Dimensions	100mm × 100mm × 100mm
Material	Heavy-Duty Cast Iron
Standard Compliance	ASTM C31, BS 1881, IS 516
Wall Thickness	Heavy-duty, Warp-Resistant Construction
Base Type	Detachable Base Plate
Assembly	Bolted Side Panels for Easy Dismantling
Surface Finish	Precision Machined Internal Surfaces
Weight	Approximately 6–7 kg (Varies by Manufacturer)
Corrosion Protection	Painted or Oiled Cast Iron Surface
Application	Concrete Compressive Strength Cube Preparation

Key Features Concrete Test Cube Mold

• Produces precise 100mm x 100mm x 100mm concrete test cubes
• Constructed from heavy-duty cast iron for long-term durability
• Features rigid walls that resist warping during compaction
• Includes a detachable base plate for easy cube removal
• Comes with assembly bolts that ensure leak-proof joints
• Suits both site-based and laboratory-based testing environments
• Meets international standards trusted by construction quality control teams



Applications Concrete Test Cube Mold

• Compressive strength testing of concrete specimens
• Quality control testing on construction sites
• Ready-mix concrete plant batch verification
• Civil engineering laboratory research and coursework
• Third-party material testing for construction projects
• ASTM C31, BS 1881, and IS 516 standard compliance testing
• Structural approval testing before large-scale construction



Who Uses This Concrete Test Cube Mold

• Construction Companies – Prepare test cubes on-site to verify concrete batch quality before
• Ready-Mix Concrete Plants – Check daily production consistency through routine cube
• Civil Engineering Laboratories – Use this mould for academic research and student training
• Government Testing Bodies – Verify concrete quality against national building
• Third-Party Testing Agencies – Perform independent compressive strength verification for
• Structural Engineers – Confirm design strength assumptions through physical cube



Frequently Asked Questions (FAQ) Concrete Test Cube Mold

Q1: What is a Concrete Test Cube Mold used for?

This mould shapes fresh concrete into standard cubes for compressive strength testing in laboratories and construction sites.

Q2: What size cubes does this mould produce?

This mould produces standard 100mm x 100mm x 100mm concrete cubes.

Q3: Which standards does this mould comply with?

This mould complies with ASTM C31, BS 1881, and IS 516 testing standards.

Q4: What material is this mould made from?

The mould uses heavy-duty cast iron construction for long-term durability and dimensional stability.

Q5: How do I prepare the mould before use?

Technicians apply a thin oil coating to the internal surfaces before pouring concrete, and this coating prevents the cube from sticking to the mould walls.

Q6: Does ASTZBD provide calibration certificates?

Yes, we provide calibration certificates with every mould upon request.

Q7: Can I use this mould with a vibrating table?

Yes, the mould’s rigid construction supports both manual tamping and vibrating table compaction methods.

Q8: Does ASTZBD offer bulk pricing for large projects?

Yes, our team provides bulk pricing for construction companies and testing agencies ordering multiple units.



Why Buy From ASTZBD

1. ASTZBD sources the Concrete Test Cube Mold from certified manufacturers, and this guarantees dimensional accuracy for every unit.
2. Our quality team inspects each mould for squareness and surface
3. finish before it leaves the Bangladesh customers receive genuine documentation, prompt delivery, and responsive after-sales support throughout the ownership period.
4. ASTZBD maintains competitive pricing without compromising mould durability or testing accuracy. Construction companies across the country choose
5. ASTZBD because our stock stays consistently available, and our team responds quickly to bulk order requests for large
