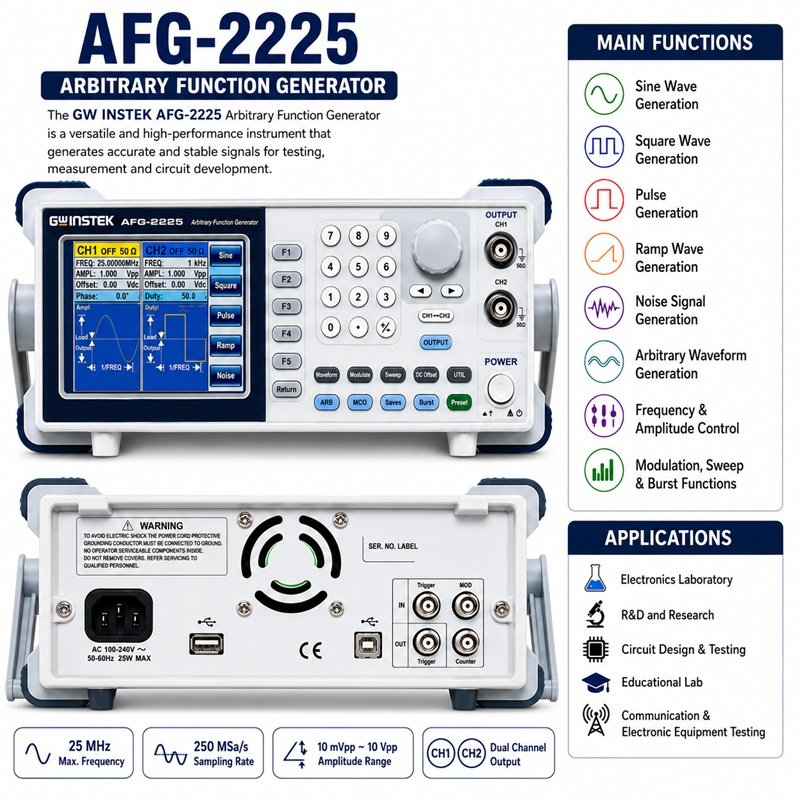

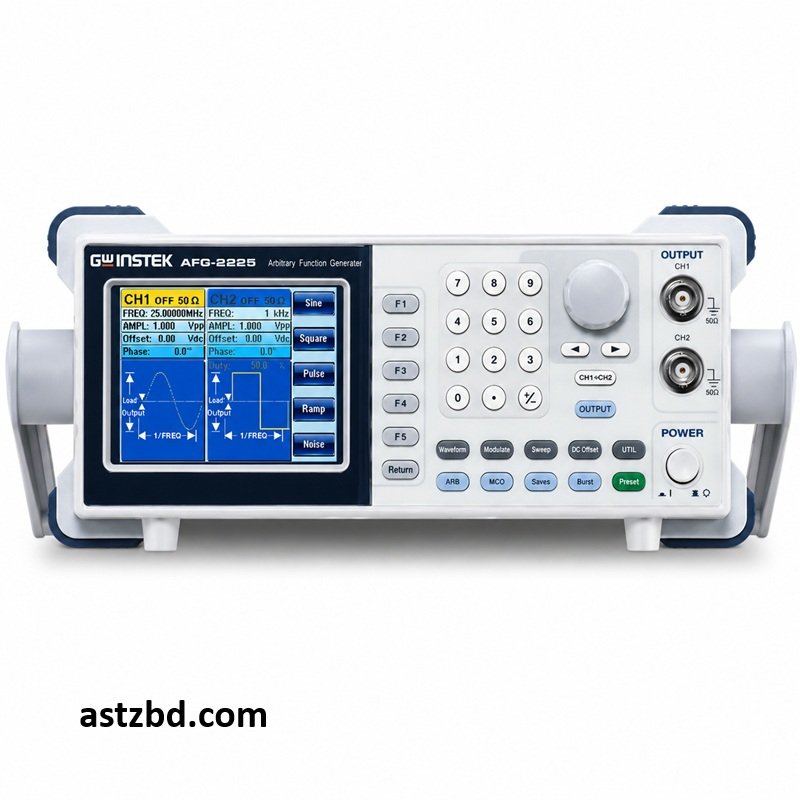

Introduction GW Instek AFG-2225
The GW Instek AFG-2225 dual-channel arbitrary function generator brings full-function dual-channel signal generation to test benches, R&D labs, and educational institutions across Bangladesh. Most basic-level generators pair one strong channel with a weaker second channel, but the AFG-2225 equips both channels with identical performance for differential and IQ signaling work. Engineers use it to build Sine, Square, Ramp, Pulse, Noise, and custom arbitrary waveforms, while the 3.5-inch color LCD keeps every setting visible during operation. ASTZBD supplies this generator to teams that need accurate, repeatable signals without paying for a high-end bench instrument.
Specifications GW Instek AFG-2225
| Specification | Details |
| Product | Arbitrary Function Generator |
| Brand | GW Instek |
| Model | AFG-2225 |
| Channels | 2 (True Dual-Channel) |
| Waveforms | Sine, Square, Ramp, Pulse, Noise, Arbitrary |
| Sample Rate | 120 MSa/s |
| Repetition Rate | 60 MHz |
| Waveform Length | 4k points |
| Amplitude Resolution | 10 bits |
| Non-Volatile Memory | 4k points |
| Frequency Range (Sine/Square) | 1µHz to 25MHz |
| Frequency Range (Ramp) | Up to 1MHz |
| Frequency Resolution | 1µHz |
| Frequency Stability | ±20 ppm |
| Frequency Aging | ±1 ppm per year |
| Amplitude Range (into 50Ω) | 1mVpp to 10Vpp |
| Amplitude Range (Open-circuit) | 2mVpp to 20Vpp |
| Amplitude Accuracy | ±2% of setting ±1mVpp (at 1kHz) |
| Output Impedance | 50Ω typical |
| Duty Cycle (Square) | 1% to 99% adjustable |
| Built-in Arbitrary Waveforms | 66 |
| Modulation | AM, FM, PM, FSK, SUM |
| Additional Functions | Sweep, Burst, Frequency Counter |
| Display | 3.5-inch color LCD |

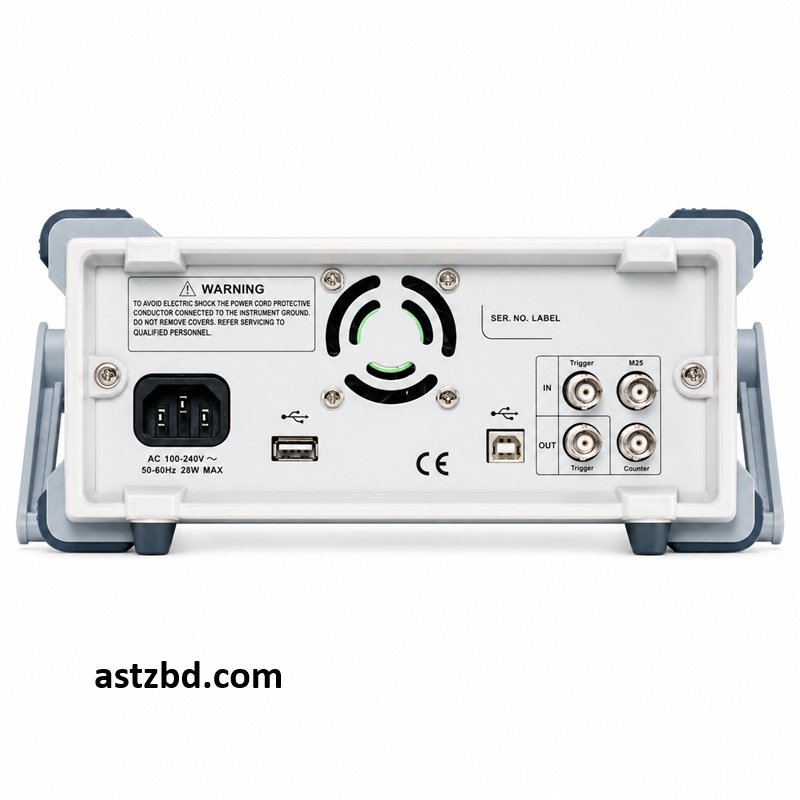

| Interfaces | USB Host, USB Device |
Key Features GW Instek AFG-2225
- Delivers true dual-channel output, with CH2 matching CH1 in performance
- Covers a frequency range of 1µHz to 25MHz for Sine and Square waveforms
- Runs a 120MSa/s sample rate with 10-bit amplitude resolution
- Stores 4k-point waveform length in non-volatile memory
- Generates Sine, Square, Ramp, Pulse, Noise, and Arbitrary waveform types
- Offers 66 built-in arbitrary waveforms and supports custom waveform creation
- Adjusts Square wave duty cycle from 1% to 99% for pulse signal sourcing
- Supports AM, FM, PM, FSK, and SUM modulation alongside Sweep and Burst modes
- Includes a built-in frequency counter for direct signal measurement
- Displays operation data and true output waveforms on a 5-inch color LCD
- Connects through USB Host and Device interfaces for remote control and file transfer
- Links directly with GW Instek GDS-series oscilloscopes to capture and reconstruct waveforms
Applications GW Instek AFG-2225
- Testing and validating analog and digital circuit designs
- Generating differential or IQ signals for communication system testing
- Simulating sensor outputs and control signals in R&D labs
- Running educational demonstrations in electronics and physics courses
- Calibrating and troubleshooting audio, RF, and mixed-signal equipment
- Creating custom arbitrary waveforms for production line testing
Who Uses This GW Instek AFG-2225
- Electronics design engineers and RF test teams
- University and polytechnic electronics laboratories
- Quality control and production testing departments
- Repair and calibration service centers
- Research institutions working on signal processing projects
- Hobbyists and makers building custom electronic circuits
Frequently Asked Questions (FAQ) GW Instek AFG-2225
Q1: What makes the AFG-2225 a true dual-channel arbitrary function generator?
Both channels share identical specifications, so CH2 performs exactly like CH1. This design suits differential and IQ signaling tasks that weaker second channels cannot handle.
Q2: What is the maximum frequency this generator produces?
The AFG-2225 generates Sine and Square waveforms up to 25MHz, with a frequency resolution of 1µHz.
Q3: Can I create custom waveforms on the AFG-2225? Yes.
The generator stores 66 built-in arbitrary waveforms, and users can edit these or build entirely new waveforms through the front panel or PC software.
Q4: Does the AFG-2225 connect to a computer or oscilloscope?
It includes USB Host and Device interfaces for PC connection and remote control, and it links directly with GW Instek GDS-series oscilloscopes to capture and reconstruct waveforms.
Q5: What modulation types does this function generator support?
It supports AM, FM, PM, FSK, and SUM modulation, along with Sweep and Burst modes for advanced signal testing.
Q6: What sample rate and resolution does the AFG-2225 use?
It runs a 120 MSa/s sample rate with 10-bit amplitude resolution and stores 4k points of waveform data.
Q7: Is this generator suitable for classroom or educational use?
Yes. Its intuitive interface, 3.5-inch color LCD, and dual-channel design make it practical for teaching labs, student projects, and entry-level bench testing.
