Description

Introduction L101 Microscope Bangladesh

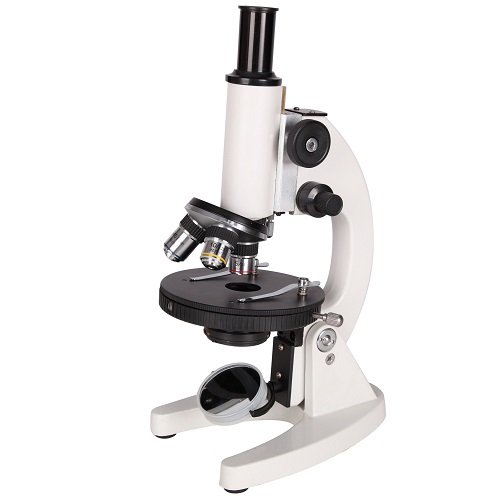

The L101 Microscope Bangladesh is a reliable monocular biological compound microscope that ASTZBD supplies to students, science teachers, and laboratory professionals across the country. Designed under the model designation XSP-L101, this instrument delivers seven magnification levels ranging from 25X to 675X through its combination of three achromatic objective lenses and three wide-field eyepieces. Furthermore, the L101 features a robust all-metal frame, a round stage with slide clips, a rotating disc diaphragm condenser, and a separate coarse and fine focusing system that makes specimen observation accurate and comfortable. As a result, science educators and laboratory managers throughout Bangladesh widely choose the L101 as their go-to microscope for biology teaching, medical training, and basic research. ASTZBD stocks the XSP-L101 and delivers it nationwide with full warranty support.

Specifications L101 Microscope Bangladesh

Optical System
Microscope Type	Monocular Biological Compound Microscope
Model	XSP-L101 (also listed as L101)
Optical Principle	Transmitted light, brightfield optics
Magnification
Total Magnification Range	25X – 675X (7 levels)
Magnification Levels	25X, 50X, 100X, 150X, 225X, 450X, 675X
Eyepiece
Eyepiece Types	H5X, H10X, H15X (wide-field, interchangeable)
Eyepiece Tube	Monocular vertical tube, 360° rotatable
Objective Lenses
Objectives	5X, 10X, 45X (semi-plan achromatic)
Nosepiece	Triple nosepiece with click-stop rotation
Focusing System
Coarse Adjustment Range	27 mm
Fine Adjustment Range	1.4 mm – 1.8 mm
Focusing Type	Separate coarse and fine adjustment knobs
Stage
Stage Type	Round stage with spring-loaded slide clips
Stage Size	90 × 90 mm (some variants: 110 × 120 mm)
Condenser & Diaphragm
Condenser Type	Rotating disc diaphragm with filter slot
Diaphragm	Iris diaphragm / rotating disc (model variant dependent)
Illumination
Standard Illumination	Plane-concave mirror (50 mm diameter)
Optional Illumination	Built-in electric lamp 20W — 110V or 220V/50Hz
Construction & General
Frame Material	All-metal (cast body)
Design	Compact, portable, triangular prism shape
Usage	Teaching, student laboratory, basic research
Certification	ISO certified (manufacturer level)
Warranty	1 year (ASTZBD) / up to 3 years (manufacturer)
Country of Origin	China
HS Code	9011100000
Packaging	Foam-padded standard export carton
Authorized Supplier in Bangladesh	ASTZBD



Key Features

1. Seven magnification levels — 25X, 50X, 100X, 150X, 225X, 450X, and 675X — covering a wide range of biological observation needs
2. Three achromatic objective lenses (5X, 10X, 45X semi-plan) mounted on a triple nosepiece for quick, click-stop switching between magnifications
3. Three interchangeable eyepieces (H5X, H10X, H15X) with wide-field optics for comfortable extended viewing sessions
4. Monocular vertical tube head that allows 360° rotation for ergonomic positioning to suit each operator
5. Separate coarse and fine focusing adjustment with fine adjustment range of 1.4 mm – 1.8 mm for precise specimen clarity
6. Round stage (90 × 90 mm) with spring-loaded slide clips that hold glass slides firmly without slipping during observation
7. Rotating disc diaphragm condenser with iris filter for flexible light control and contrast adjustment
8. Plane-concave mirror (50 mm) illumination system — usable with natural or artificial light sources
9. Optional electrical illumination upgrade (110V/20W or 220V/20W) for consistent indoor use without natural light dependency
10. All-metal mechanical construction that provides durability and stable optical alignment throughout years of classroom and laboratory use
11. Compact and portable design that fits easily into standard laboratory storage cabinets and carrying cases
12. Coarse adjustment range of 27 mm for rapid focusing across a wide specimen depth range



Applications

1. Biology practical lessons at secondary schools, colleges, and madrasas following the national curriculum of Bangladesh
2. Undergraduate biology, botany, zoology, and microbiology laboratory sessions at public and private universities
3. Medical and paramedical training institutions for blood smear, urine sediment, and basic pathology slide examination
4. Basic bacteriology and cell biology research in small departmental laboratories
5. Water quality monitoring — examination of aquatic microorganisms, algae, and protozoa in water samples
6. Agricultural research and extension services for plant pathology, seed quality, and soil microorganism observation
7. Pharmaceutical and food safety laboratories for routine quality control microscopy
8. Science fairs, school science clubs, and STEM education programs that need affordable student microscopes
9. Private coaching centers and science tutoring labs that conduct hands-on biology experiments



Who Uses This

• Secondary school biology teachers and laboratory assistants at government and private schools across Bangladesh
• College and university laboratory officers setting up biology, botany, and zoology practical courses
• Medical students and paramedic trainees at nursing institutes, medical assistant training schools (MATS), and community clinics
• Researchers and faculty members at public universities (Dhaka University, Jahangirnagar University, BSMMU) for introductory lab work
• Private diagnostic laboratories that need an affordable backup microscope for routine sample screening
• NGOs and development organizations that run science and health education programs in rural Bangladesh
• Parents and homeschooling families who want a quality microscope for self-paced science learning at home
• Aquaculture and fisheries research stations that monitor plankton and water organisms



Frequently Asked Questions (FAQ)

1. Q What is the total magnification range of the L101 Microscope?

The L101 Microscope (XSP-L101) delivers seven magnification levels: 25X, 50X, 100X, 150X, 225X, 450X, and 675X. The instrument achieves these levels by combining three achromatic objective lenses (5X, 10X, 45X) with three interchangeable eyepieces (5X, 10X, 15X). Students and lab technicians can switch between levels instantly using the triple nosepiece click-stop mechanism.

2. Q Is the L101 Microscope suitable for secondary school students in Bangladesh?

Yes. The L101 is one of the most widely used student biological microscopes in school laboratories across Bangladesh. Its simple coarse and fine focusing system, sturdy all-metal frame, and 25X–675X magnification range fully meet the requirements of the secondary school biology curriculum. Teachers and lab assistants find it easy to maintain and operate, and students learn the fundamentals of microscopy quickly on this instrument.

3. Q How do I switch between magnifications on the L101?

The L101 carries a triple nosepiece that rotates with a firm click-stop at each objective position. To change magnification, users simply rotate the nosepiece until they feel and hear the click that confirms the new objective is in the optical path. After switching, users re-focus using the coarse adjustment knob and then fine-tune with the fine adjustment knob. Swapping eyepieces (5X, 10X, 15X) provides additional magnification steps without moving the nosepiece.

4. Q Does ASTZBD supply glass slides and accessories with the L101?

Yes. ASTZBD stocks a range of compatible accessories alongside the L101 Microscope, including prepared biology slide sets, blank glass slides, cover slips, immersion oil, lens cleaning tissue, and carrying cases. Buyers can add these items to their order to receive a complete ready-to-use microscopy kit in a single delivery.
