Introduction Hydraulic GSM Cutter

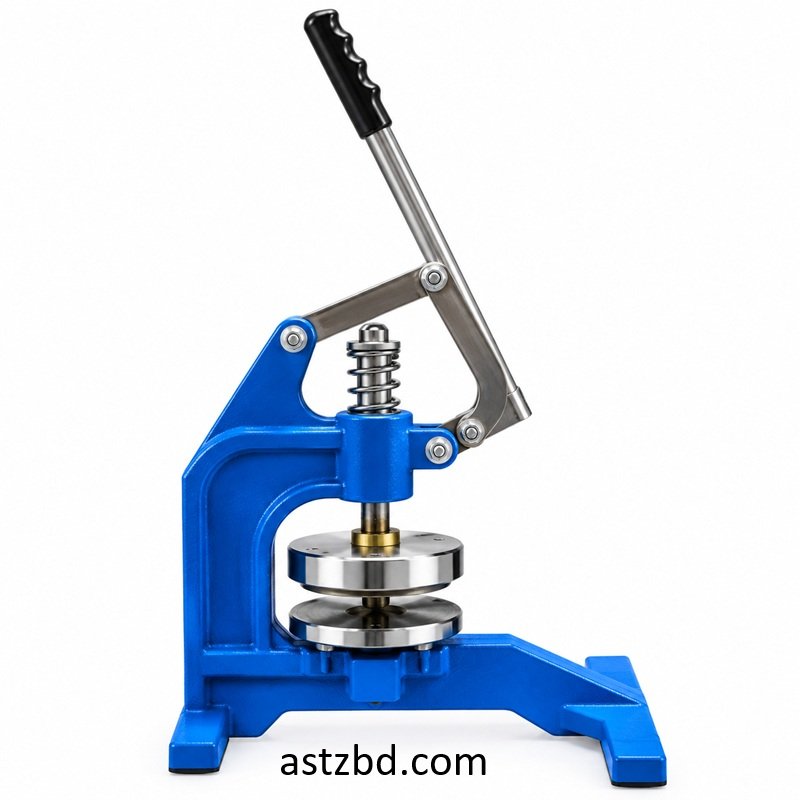

The Hydraulic GSM Cutter with Round Blade Knife CU-268 gives textile labs and QC teams a fast, repeatable way to prepare fabric samples for GSM (Grams per Square Meter) testing. This Japan-origin instrument uses a hydraulic hand press and a round blade knife to punch out a clean, exact 100cm² circular sample in one smooth motion, so operators avoid the fraying and measuring errors that come with manual cutting. Textile mills, buying houses, and testing labs across Bangladesh choose this cutter because it handles fabric, leather, film, and several other materials with the same consistent accuracy. ASTZBD supplies the genuine CU-268 model built for daily industrial and lab use.

SPECIFICATIONS Hydraulic GSM Cutter

Parameter	Detail
Model	CU-268
Product Type	Hydraulic Hand Press GSM Cutter with Round Blade Knife
Body Material	Stainless steel
Cutting Area	100 cm²
Sample Diameter	112.84 mm
Sample Thickness Range	0.1 mm – 10 mm
Operation	Manual (hydraulic hand press)
Outer Dimensions	34 x 34 x 24 cm
Origin	Japan
Compatible Materials	Textile, leather, aluminum film, carpet, plastic, paper, carbon composite, poly-foam board
Blade Type	Round blade knife
Use Case	Fabric and material sample preparation for GSM testing
Compatible Accessory	GSM weighing balance (sold separately)



Key Features Hydraulic GSM Cutter

1. The hydraulic hand press applies even, consistent force, so every cut comes out clean and accurate.
2. The round blade knife reduces fraying and distortion on delicate or layered materials.
3. The cutter produces a precise 112.84 mm diameter sample, giving an exact 100 cm² cutting area.
4. Operators cut materials from 0.1 mm up to 10 mm thick with the same machine.
5. The stainless steel construction resists wear and holds up under daily lab use.
6. The compact 34 x 34 x 24 cm body fits easily on a standard lab bench.
7. Technicians switch between fabric, leather, film, carpet, plastic, paper, and composite boards without changing tools.
8. The ergonomic hand-press design keeps operation simple, so new staff learn the process quickly.



Applications Hydraulic GSM Cutter

1. Textile mills use the CU-268 to verify fabric GSM during production runs.
2. Garment buying houses run quick weight checks on incoming fabric rolls before approval.
3. Upholstery and automotive fabric manufacturers test material density for spec compliance.
4. Leather processors cut standard samples for weight and thickness verification.
5. Packaging and paperboard producers check sheet weight consistency across batches.
6. Composite and poly-foam manufacturers prepare samples for density and quality testing.

Who Uses This Hydraulic GSM Cutter

• Textile quality control (QC) inspectors and lab technicians
• Garment buying house merchandisers
• Fabric mill and dyeing unit lab staff
• Leather goods and footwear manufacturers
• Automotive and upholstery fabric suppliers
• Packaging and composite material testing labs



Frequently Asked Questions (FAQ) Hydraulic GSM Cutter

Q1: What does the CU-268 hydraulic GSM cutter actually do?

It presses out a precise 100 cm² round sample from fabric, leather, or similar sheet materials, ready for weighing on a GSM balance.

Q2: How does the hydraulic hand press improve accuracy?

The hydraulic mechanism applies steady, even pressure across the round blade, so the cutter produces a full, clean circle instead of a partial or torn edge Hydraulic GSM Cutter.

Q3: What thickness range can this cutter handle?

The CU-268 cuts materials from 0.1 mm up to 10 mm thick, which covers thin fabrics as well as thicker foam, board, and composite sheets.

Q4: Do I need a separate machine to calculate GSM after cutting?

Yes. Technicians weigh the cut sample on a precision GSM balance, and the balance converts the reading into grams per square meter automatically.

Q5: Can the CU-268 cut leather and plastic film as well as fabric?

Yes. The round blade knife handles textile, leather, aluminum film, carpet, plastic, paper, carbon composite, and poly-foam board.

Q6: Is the CU-268 suitable for a small QC lab with limited bench space?

Yes. The unit measures 34 x 34 x 24 cm, so it fits comfortably on a standard lab bench without extra floor space.

Q7: Does ASTZBD provide genuine CU-268 units with warranty support?

Yes, ASTZBD sources the authentic Japan-origin CU-268 and offers after-sales support for blades and spare parts.
