Description

Hioki DT4253 Price in Bangladesh

The Hioki DT4253 price in Bangladesh reflects a top-tier, industrial-grade True RMS multimeter built for electricians, HVAC technicians, and maintenance engineers who need the full range of diagnostic capability in a single handheld unit. Available through ASTZ (Advance Science & Technology Zone), an authorized distributor of genuine Hioki instruments in Bangladesh, this model adds clamp-on current measurement up to 1000A, K-type temperature sensing, AUTO AC/DCV switching, and 4–20mA loop testing — capabilities not found in the DT4221, DT4222, or DT4252 models. It represents the most complete instrument in Hioki’s pocket-safety and standard-tier lineup, priced for the added functionality it delivers.

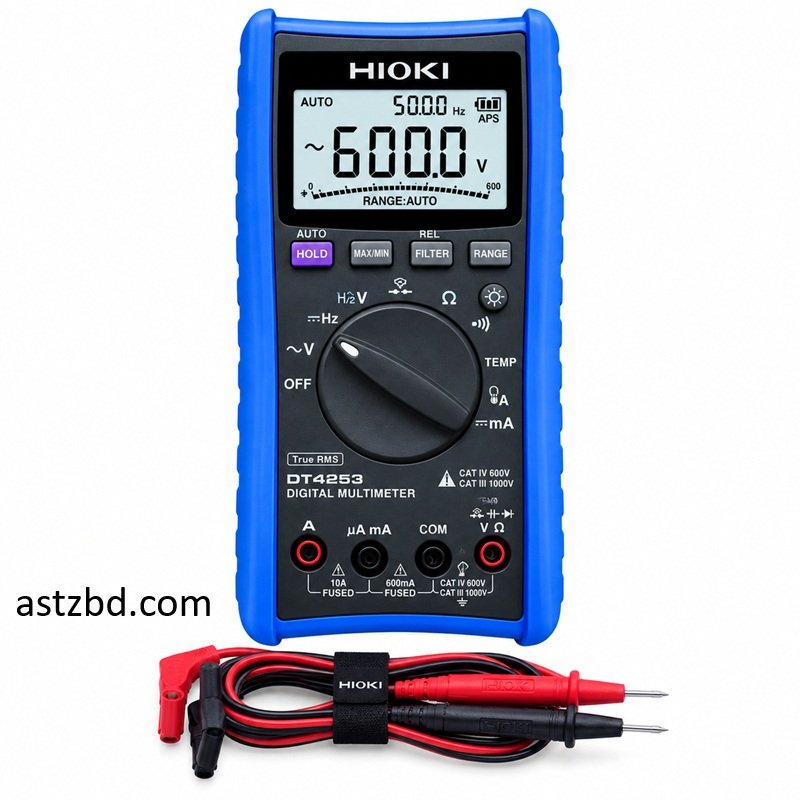

Hioki DT4253 Digital Multimeter Overview

This model belongs to Hioki’s DT4200 series and sits at the top of ASTZ’s digital multimeter lineup alongside the DT4221, DT4222, DT4252, and DT4256. Where the DT4252 covers standard 1000V voltage and direct 10A current measurement, this unit goes further — adding clamp-on current measurement up to 1000A (with optional clamp probes), temperature measurement via K-type thermocouple, automatic AC/DCV mode switching, and a 4–20mA percentage conversion display commonly used in HVAC and process instrumentation testing. It is purpose-built for technicians who need one instrument to handle voltage, current, resistance, capacitance, temperature, and process-signal diagnostics in the field.

Full Specification: Hioki DT4253 Digital Multimeter Japan

Hioki DT4253 Price in Bangladesh

The Hioki DT4253 price in Bangladesh is 30,000৳, available at ASTZ with genuine manufacturer warranty and authentic Japan-sourced stock. Given the added functionality — clamp-on current up to 1000A, temperature measurement, and AUTO AC/DCV switching — this pricing reflects a genuine step up in capability compared to the DT4252 (18,500৳), which lacks these three features entirely. As with all genuine Hioki products purchased through ASTZ, buyers get full after-sales support and warranty coverage — always confirm you’re buying from an authorized distributor, since counterfeit or improperly calibrated units are common in the market and can produce unreliable readings, especially risky for temperature and high-current clamp measurements where precision matters most.

What Makes This HIOKI DT4253 Digital Multimeter Different

Compared to the DT4252, this HIOKI DT4253 Digital Multimeter adds three capabilities that push it into industrial diagnostic territory: clamp-on AC current measurement up to 1000A using optional clamp probes, K-type thermocouple temperature measurement from -40°C to 400°C, and AUTO AC/DCV mode switching that automatically detects whether a signal is AC or DC without manual dial selection. It also adds a highly sensitive DC current range (60μA to 60mA) with 4–20mA percentage conversion display — a function specifically useful for testing process control loops and instrumentation signals common in HVAC and industrial automation. Where the DT4252 stops at direct current measurement up to 10A, this model extends far beyond that with clamp-based measurement up to 1000A, making it the natural choice for technicians working on three-phase panels, motor feeders, and high-current industrial circuits.

Key Features: HIOKI DT4253 Digital Multimeter

1. AUTO AC/DCV Mode Switching

Automatically detects and switches between AC and DC voltage measurement — no manual mode selection needed, speeding up routine diagnostic work.

2. Clamp-On Current Measurement (10A–1000A)

7 ranges with optional clamp probes let you measure high current on three-phase panels and motor feeders without breaking the circuit.

3. K-Type Temperature Measurement (-40°C to 400°C)

Built-in temperature function with a K-type thermocouple probe (sold separately) supports HVAC diagnostics and thermal troubleshooting.

4. High-Sensitivity Current Range (60μA–60mA)

Ideal for testing instrumentation and control signals, including 4–20mA process loops used in industrial automation.

5. 4–20mA Percentage Conversion Display

Converts current loop readings directly to percentage output, simplifying process-instrumentation calibration checks.

6. Full Resistance, Capacitance & Diode Testing

Matches the DT4252’s diagnostic functions — 60MΩ resistance, 10mF capacitance, and diode test — for complete general-purpose troubleshooting.

7. Extended Frequency Range (up to 99.99 kHz)

Wider frequency measurement range than the DT4221/DT4222/DT4252 models, useful for signal and drive-frequency verification.

8. Low-Pass Filter for Inverter Measurements

Filters high-frequency harmonics for accurate fundamental voltage readings on inverter and motor-drive systems.

HIOKI DT4253 Multimeter — Full Comparison Table (All Models)

Which model should you choose?

• Choose this model if you need clamp-on current up to 1000A, temperature measurement, and AUTO AC/DCV switching — the most complete instrument in the lineup for industrial and HVAC diagnostics.
• Choose the DT4221 if your work is mostly voltage checking and confirming live circuits.
• Choose the DT4222 if you need general-purpose resistance, capacitance, and diode testing at 600V.
• Choose the DT4252 if you need 1000V range and direct 10A current without clamp or temperature functions.
• Choose the DT4256 if you need clamp current and built-in voltage detection but don’t require temperature measurement.

Who Should Buy This Model

The HIOKI DT4253 multimeter is built for professionals who need the full range of electrical and process diagnostics in one instrument.

• Industrial electricians working on three-phase panels and high-current motor feeders
• HVAC technicians who need combined temperature and electrical diagnostics for system troubleshooting
• Process control technicians testing 4–20mA instrumentation loops and control signals
• Facility maintenance engineers who want one instrument to cover voltage, current, resistance, capacitance, and temperature
• Quality assurance teams requiring comprehensive field diagnostics with USB data logging capability

How to Use This Digital Multimeter

1. Insert the batteries — install all 4 LR03 alkaline batteries before first use.
2. Select the measurement mode — rotate the dial to Voltage (AUTO AC/DCV), Resistance, Capacitance, Current, Temperature, Continuity, or Diode Test.
3. For clamp current measurement — attach the optional clamp probe accessory and clamp around a single conductor for an accurate reading.
4. For temperature measurement — connect a K-type thermocouple probe (sold separately) to the dedicated input terminal.
5. For 4–20mA loop testing — connect leads in series with the loop and enable the percentage conversion display for direct readout.
6. Read the display — the main LCD shows the measured value; use MAX/MIN/Average to track fluctuating readings.
7. Power down after use — the auto-power save feature helps, but manually switching off extends battery life further.

Maintenance & Care Tips

• Store in a dry place; avoid extreme humidity common in Bangladesh’s monsoon season
• Replace all 4 LR03 batteries together when the low-battery indicator appears
• Never exceed rated current input on either direct or clamp measurement ranges
• Handle the K-type thermocouple probe carefully — the tip is fragile and sensitive to bending
• Discharge capacitors fully before capacitance testing
• Wipe the holster and body with a dry cloth — avoid solvents on the display window
• Periodically verify calibration accuracy, especially before critical industrial diagnostic work

HIOKI DT4253 Digital Multimeter – FAQ

1. What is the Hioki DT4253 price in Bangladesh?

The Hioki DT4253 price in Bangladesh is 30,000৳, available at ASTZ with genuine manufacturer warranty and authentic Japan-sourced stock.

2. Why is the price higher than the DT4252?

The price is higher because this model adds clamp-on current measurement up to 1000A, K-type temperature sensing, AUTO AC/DCV switching, and 4–20mA loop testing — none of which are available on the DT4252.

3. Can this multimeter measure temperature?

Yes, it includes a K-type thermocouple temperature measurement function from -40°C to 400°C. Note that the thermocouple probe itself is typically sold separately.

4. What is the difference between this model and the DT4256?

This model includes temperature measurement and 4–20mA percentage conversion display, which the DT4256 lacks. However, the DT4256 includes a built-in voltage detection function that this model does not have. Both support clamp-on current up to 1000A and AUTO AC/DCV switching.

5. Do I need to buy the clamp current probe separately?

Yes, the clamp-on current measurement function requires an optional clamp probe accessory, which is typically purchased separately from the base multimeter unit.

6. Is the HIOKI DT4253 multimeter suitable for HVAC technicians?

Yes, the combination of temperature measurement, current diagnostics, and 4–20mA loop testing makes the HIOKI DT4253 multimeter well suited for HVAC system troubleshooting and process instrumentation testing.

7. Does this model come with a warranty in Bangladesh?

Yes, when purchased through ASTZ, this HIOKI DT4253 Digital Multimeter comes with full manufacturer warranty and after-sales support.

8. Is this a genuine Japan-made product?

Yes, the unit purchased through ASTZ is fully genuine, manufactured in Japan, and comes with an official warranty card.

9. How long does the battery last?

Powered by 4 LR03 alkaline batteries, it provides up to 130 hours of continuous use with the backlight off.

10. What is the maximum current this model can measure?

With the optional clamp-on probe, it can measure AC current up to 1000A across 7 ranges. Without the clamp accessory, the sensitive DC current range covers 60μA to 60mA for instrumentation testing.

11. What accessories are included by default?

The standard package includes one L9207-10 test lead set, one holster, an instruction manual, and four LR03 alkaline batteries. Clamp probes and temperature probes are optional accessories.

12. Can this multimeter be used for three-phase industrial panels?

Yes, with 1000V voltage range and clamp-on current measurement up to 1000A, it is well suited for testing three-phase panels and high-current motor feeders.

13. Where can I check the current HIOKI DT4253 price?

The current HIOKI DT4253 price is listed on the product page at astzbd.com; pricing may be updated periodically, so always check before ordering.

14. Where can I order this Digital Multimeter from?

You can order directly from astzbd.com’s Digital Multimeter category, or contact via call/WhatsApp for quick delivery confirmation across Bangladesh.

Warranty & After-Sales Support

Every HIOKI DT4253 Digital Multimeter purchased through ASTZ comes with genuine manufacturer warranty and dedicated after-sales support, including calibration guidance and replacement accessories such as test leads, holsters, and optional clamp or temperature probes.
