Description

Kyoritsu KEW 1012 Price in Bangladesh

The Kyoritsu KEW 1012 price in Bangladesh is 11,500৳, reflecting a True RMS step up from the entry-level KEW 1009, available through ASTZ (Advance Science & Technology Zone), an authorized distributor of genuine Kyoritsu instruments from Japan. With a higher-resolution 6040-count bar graph display, MIN/MAX recording, relative-value (REL) function, and True RMS AC measurement, the Kyoritsu KEW 1012 Digital Multimeter is built for electricians and technicians who need accurate readings on distorted AC waveforms — something the basic KEW 1009 cannot reliably provide.

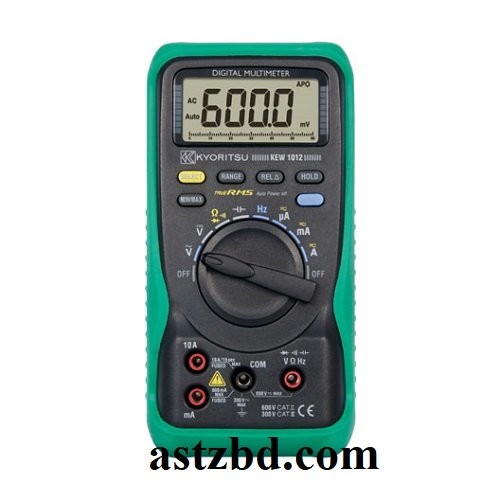

Kyoritsu KEW 1012 Digital Multimeter – Overview

The Kyoritsu KEW 1012 Digital Multimeter sits one tier above the KEW 1009 in ASTZ’s Kyoritsu lineup, while remaining more affordable and portable than the KEW 1021R and KEW 1051. It covers DC/AC voltage up to 600V, DC/AC current up to 10A, resistance up to 60MΩ, capacitance up to 4000μF, frequency up to 10MHz, and duty cycle measurement — all with True RMS accuracy on the AC ranges, meaning it reads correctly even on non-sinusoidal waveforms common on inverter-driven and variable-load electrical systems. The added MIN/MAX and REL functions let technicians track fluctuating readings and measure variation from a reference point, both genuinely useful for diagnostic work beyond basic voltage checks.

Full Specification: Kyoritsu KEW 1012 Digital Multimeter

Kyoritsu KEW 1012 Price in Bangladesh

The Kyoritsu KEW 1012 price in Bangladesh is 11,500৳, available at ASTZ with genuine manufacturer warranty and authentic Japan-sourced stock. Compared to the entry-level KEW 1009 at 10,000৳, the price increase of 1,500৳ buys True RMS accuracy, MIN/MAX recording, relative-value measurement, a significantly higher-resolution display, and a 40× wider capacitance range — a genuinely worthwhile upgrade for technicians who work with variable-frequency drives or distorted AC signals. Always confirm you’re purchasing from an authorized distributor, since counterfeit or improperly calibrated meters give unreliable readings and typically lack proper after-sales support.

What Makes the Kyoritsu KEW 1012 Multimeter Different

The core advantage of the Kyoritsu KEW 1012 multimeter over the KEW 1009 is True RMS AC measurement — standard (non-True RMS) multimeters can give inaccurate readings on non-sinusoidal waveforms produced by variable-frequency drives, dimmers, and modern electronic loads, while True RMS calculates the actual effective value regardless of waveform shape. Combined with MIN/MAX function to capture fluctuating readings over time and REL (relative value) function to measure deviation from a reference point, the Kyoritsu KEW 1012 multimeter is meaningfully more capable for diagnostic work than the entry-level KEW 1009. Its capacitance range also extends to 4000μF (versus 100μF on the KEW 1009), covering larger motor-run and power-supply capacitors. Compared to the KEW 1021R, this model lacks a backlit display and clamp-sensor current capability, and compared to the KEW 1051, it does not offer temperature measurement or CAT IV safety rating — positioning it as a strong mid-tier choice between basic and industrial-grade instruments.

Key Features: Kyoritsu KEW 1012 Digital Multimeter

1. True RMS AC Measurement

Accurately measures AC voltage and current even on distorted, non-sinusoidal waveforms — essential for testing inverter-driven and variable-load electrical systems.

2. MIN/MAX Recording Function

Captures the highest and lowest readings during a measurement period, useful for diagnosing intermittent electrical faults or voltage fluctuations.

3. REL (Relative Value) Function

Measures and displays variation from a stored reference value, helpful for comparing readings against a known baseline.

4. High-Resolution 6040-Count Display with Bar Graph

Offers finer measurement resolution than basic 4000-count meters, with a bar graph for tracking fast-changing signals.

5. Extended Capacitance Range (up to 4000μF)

Covers larger capacitors used in motor-start circuits and power supplies — a 40× wider range than the entry-level KEW 1009.

6. Duty Cycle and Frequency Measurement

Measures duty cycle from 0.1% to 99.9% and frequency up to 10MHz, useful for PWM signal diagnostics and general electronic troubleshooting.

7. Dual Safety Rating (CAT III 300V / CAT II 600V)

Meets IEC 61010-1 safety standards suitable for general electrical and light industrial work.

Kyoritsu KEW 1012 Digital Multimeter — Full Comparison Table (Kyoritsu Lineup)

Which model should you choose?

• Choose this Kyoritsu KEW 1012 Digital Multimeter if you need True RMS accuracy, MIN/MAX recording, and a wider capacitance range for a modest price increase over basic models.
• Choose the KEW 1009 if basic general-purpose testing without True RMS is enough for your work.
• Choose the KEW 1021R if you want a lighter, backlit meter with optional clamp-sensor current measurement for field work.
• Choose the KEW 1051 if you need industrial-grade CAT IV 600V safety, temperature measurement, and a low-pass filter for variable-frequency drive diagnostics.

Who Should Buy the Kyoritsu KEW 1012 Digital Multimeter

• Electricians and technicians working with variable-frequency drives or distorted AC waveforms where True RMS accuracy matters
• Maintenance engineers who need MIN/MAX recording to diagnose intermittent electrical faults
• HVAC and motor-drive technicians testing larger capacitors in motor-start and power-supply circuits
• Facility maintenance teams who want a reliable mid-tier instrument without industrial-grade pricing
• Electronics technicians working with PWM circuits who need duty cycle and frequency measurement

How to Use the Kyoritsu KEW 1012 Digital Multimeter

1. Insert the batteries — install both R6 (1.5V) batteries before first use.
2. Select the measurement mode — rotate the dial to DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, or Duty Cycle.
3. Enable MIN/MAX or REL as needed — press the corresponding button to record fluctuating readings or measure deviation from a reference value.
4. Connect the test leads — use the included 7066A test leads for voltage, resistance, capacitance, and diode measurements.
5. For current measurement — connect leads to the appropriate current terminal; never exceed the 10A rated input.
6. Read the display — the 6040-count LCD with bar graph shows the measured value and trend clearly.
7. Power down after use — auto-power-off activates within 15 minutes of inactivity to conserve battery life.

Maintenance & Care Tips

• Store in a dry place; avoid extreme humidity common in Bangladesh’s monsoon season
• Replace both R6 batteries together when readings become unstable or the low-battery indicator appears
• Discharge larger capacitors fully before capacitance testing to avoid inaccurate readings or damage
• Check the internal fuses if current measurement shows no reading
• Wipe the body with a dry cloth — avoid solvents on the display window
• Periodically verify calibration accuracy, especially before critical True RMS diagnostic work

Kyoritsu KEW 1012 Digital Multimeter – FAQ

1. What is the Kyoritsu KEW 1012 price in Bangladesh?
The Kyoritsu KEW 1012 price in Bangladesh is 11,500৳, available at ASTZ with genuine manufacturer warranty and authentic Japan-sourced stock.

2. What is the difference between the Kyoritsu KEW 1012 and KEW 1009?
The KEW 1012 adds True RMS measurement, MIN/MAX function, REL (relative value) function, a higher-resolution 6040-count display, higher resistance range (60MΩ vs 40MΩ), and a much wider capacitance range (4000μF vs 100μF). The KEW 1009 covers the same core measurement types at a lower price without these functions.

3. What does True RMS mean, and why does it matter?
True RMS (Root Mean Square) measurement calculates the actual effective value of an AC signal regardless of its waveform shape, giving accurate readings even on distorted, non-sinusoidal signals from variable-frequency drives and modern electronic loads — something non-True RMS meters cannot reliably do.

4. Can this Kyoritsu KEW 1012 Digital Multimeter measure duty cycle?
Yes, it measures duty cycle (pulse width/pulse period) from 0.1% to 99.9%, useful for diagnosing PWM signals in motor drives and switching power supplies.

5. Is the Kyoritsu KEW 1012 multimeter suitable for testing distorted AC waveforms?
Yes, the Kyoritsu KEW 1012 multimeter’s True RMS function is specifically designed to accurately measure AC voltage and current on distorted, non-sinusoidal waveforms common on inverter-driven and variable-load electrical systems.

6. What is the difference between the KEW 1012 and KEW 1021R?
The KEW 1021R adds a backlit display and an optional clamp-sensor mode for current measurement up to 200A, along with a higher CAT IV 300V safety rating, but has a narrower capacitance range (1000μF vs 4000μF) and lower resistance range (40MΩ vs 60MΩ) than the KEW 1012.

7. Does this multimeter come with a warranty in Bangladesh?
Yes, when purchased through ASTZ, the Kyoritsu KEW 1012 Digital Multimeter comes with full manufacturer warranty and after-sales support.

8. Is this a genuine Japan-made product?
Yes, the Kyoritsu KEW 1012 Digital Multimeter purchased through ASTZ is fully genuine, manufactured in Japan.

9. What is the MIN/MAX function used for?
It records the highest and lowest readings captured during a measurement period, useful for diagnosing intermittent electrical faults or monitoring voltage fluctuations over time without watching the display continuously.

10. How long does the battery last, and what type does it use?
It runs on two R6 (1.5V) alkaline batteries, with auto-power-off activating within 15 minutes of inactivity to conserve battery life.

11. Can this model test large capacitors?
Yes, it measures capacitance up to 4000μF across 6 ranges, covering larger capacitors used in motor-start circuits and power supplies, in addition to smaller electronic components.

12. Where can I check the current Kyoritsu KEW 1012 price?
The current Kyoritsu KEW 1012 price is listed on the product page at astzbd.com; confirm before ordering by calling or messaging ASTZ directly.

13. Where can I order the Kyoritsu KEW 1012 Digital Multimeter from?
You can order directly from astzbd.com’s Digital Multimeter category, or contact via call/WhatsApp for delivery confirmation across Bangladesh.

Warranty & After-Sales Support

Every Kyoritsu KEW 1012 Digital Multimeter purchased through ASTZ comes with genuine manufacturer warranty and dedicated after-sales support, including calibration guidance and replacement accessories such as test leads and fuses.
