Description

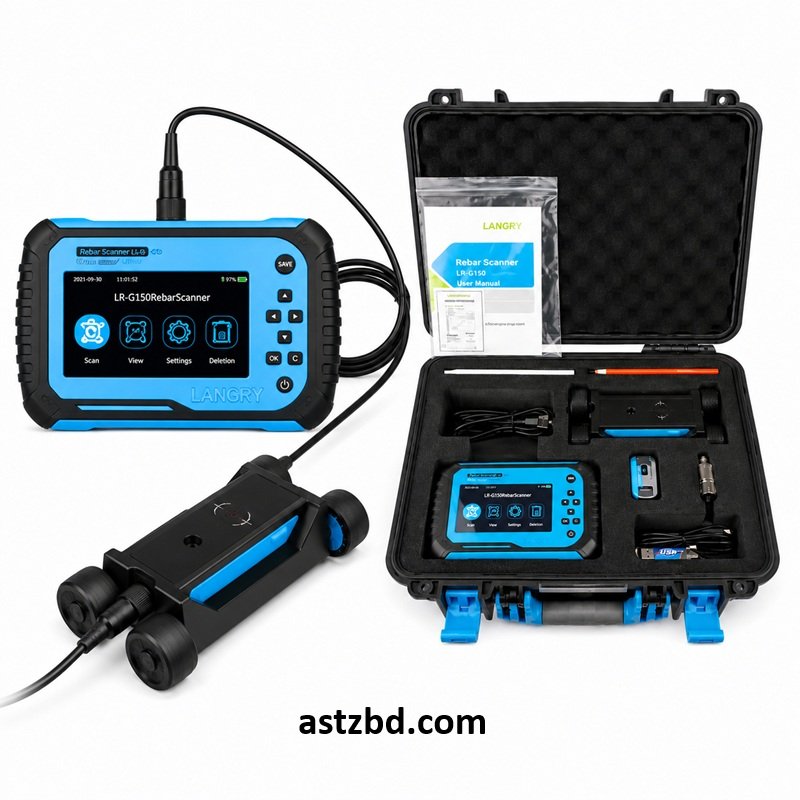

Introduction Langry LR-G150 Concrete Rebar Detecto

A reliable Concrete Rebar Detector saves engineers from guesswork on every job site. The Langry LR-G150 scans reinforced concrete and pinpoints rebar position, cover depth, and diameter without a single destructive test. Site inspectors point the probe at a wall or slab, and the full-color touch screen displays clear, instant readings. The device covers a 6mm to 190mm detection range, so it handles thin residential slabs and thick structural elements within one tool. Astzbd supplies this original Langry unit to contractors, testing labs, and government inspection teams across Bangladesh. Every unit ships with genuine factory calibration, so your measurements match the accuracy the manufacturer promises.

Specifications Langry LR-G150 Concrete Rebar Detecto

Model	Langry LR-G150 (RS150)
Product Type	Portable Concrete Rebar Detector / Scanner
Cover Depth Detection Range	6mm – 190mm
Rebar Diameter Detection Range	F6mm – F50mm
Diameter Display Accuracy	0.1mm
Max. Deviation on Diameter Estimate	±1mm (under optimal conditions)
Cover Depth Accuracy (6–80mm)	±1mm
Cover Depth Accuracy (81–120mm)	±2mm
Cover Depth Accuracy (121–140mm)	±3mm
Cover Depth Accuracy (141–180mm)	±4mm
Display	5-inch full-color touch LCD, 854×480 resolution
Battery	6400mAh rechargeable lithium-ion, detachable
Protection Class	IP55 (dust and water resistant)
Operating Modes	Handheld probe or displacement trolley
Sensor Technology	High-precision linear Hall sensors with solid-state transmitting coils
Data Storage	Onboard storage with PC software export and report generation
Standards Compliance	BS 1881 Part 204, DGZfP B2, DIN 1045, SIA 262-1, SN 505262, SS 78-B4
Package Includes	Host unit, probe, signal line, flexible rule, charger, instrument case
Net Weight (Host)	3.1kg
Country of Sale	Bangladesh



Key Features Langry LR-G150 Concrete Rebar Detecto

• The LR-G150 detects rebar cover depth across a 6mm to 190mm range, which covers thin and thick concrete sections alike.
• The scanner estimates rebar diameter from F6mm to F50mm with a display accuracy of 1mm.
• A 5-inch full-color touch screen at 854×480 resolution shows scan results clearly in bright outdoor
• The device runs on a 6400mAh lithium battery, which supports extended field sessions without a mid-day
• An IP55 rating protects the unit from dust and light rain on active construction
• Technicians can operate the probe by hand or attach it to the displacement trolley for continuous line
• High-power solid-state transmitting coils resist electromagnetic interference near rebar cages and site
• The bundled software exports scan data and generates test reports automatically for project



Applications Langry LR-G150 Concrete Rebar Detecto

1. Locating rebar position and spacing before drilling or coring concrete
2. Verifying concrete cover depth against design and building code requirements
3. Structural inspection of bridges, buildings, tunnels, and roads
4. Pre-renovation surveys to avoid cutting through embedded steel
5. Quality control audits during new construction and casting stages
6. Post-earthquake or post-damage structural assessments
7. Academic research and civil engineering laboratory training



Who Uses This Langry LR-G150 Concrete Rebar Detecto

• Site engineers confirm rebar placement before core drilling or anchor
• Structural inspectors verify cover depth compliance during building
• Renovation contractors scan walls and slabs before cutting or
• Government infrastructure teams inspect bridges, roads, and public
• Testing laboratories run non-destructive assessments for client
• Civil engineering faculties train students on non-destructive testing
• Quality assurance departments at construction firms track reinforcement accuracy across

Frequently Asked Questions (FAQ) Langry LR-G150 Concrete Rebar Detecto

Q1: What depth range does the LR-G150 detect?

The device detects rebar cover depth from 6mm to 190mm, which covers most residential and structural concrete sections.

Q2: How accurate is the diameter estimate?

The scanner estimates rebar diameter within ±1mm under optimal site conditions, though nearby ferromagnetic materials can affect precision.

Q3: Can the device detect wires and cables inside concrete?

The LR-G150 can identify cables and wires within a certain depth range, though it primarily targets rebar detection Langry LR-G150 Concrete Rebar Detecto.

Q4: Does the detector work in wet or dusty environments?

The IP55 protection rating allows the device to handle dust exposure and light rain on active job sites Langry LR-G150 Concrete Rebar Detecto.

Q5: How long does the battery last on a full charge?

The 6400mAh battery supports extended field use across a full working day, and the detachable design allows quick battery swaps Langry LR-G150 Concrete Rebar Detecto.

Q6: Can I attach the probe to a trolley for large-area scanning?

Yes. The probe works independently for spot checks or attaches to the displacement trolley for continuous line scans.

Q7: Does astzbd provide calibration certification?

Astzbd tests each unit before shipment and can share the manufacturer’s calibration documentation on request.
