Description

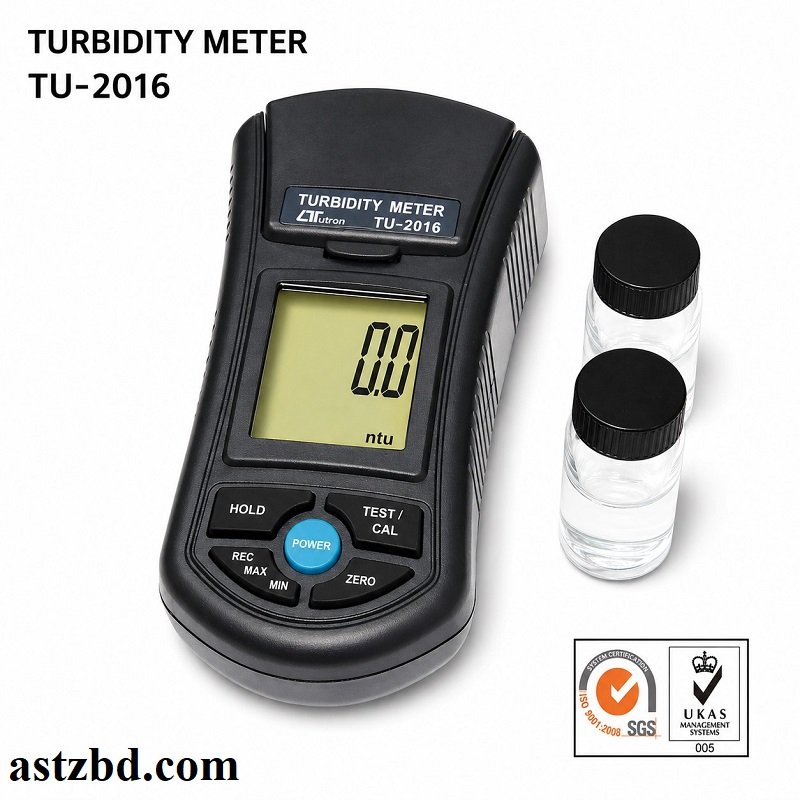

Introduction Lutron TU-2016 Turbidity Meter

The Lutron TU-2016 Turbidity Meter solves one of the most critical challenges in water quality management: measuring how suspended particles reduce water clarity. Turbidity — expressed in Nephelometric Turbidity Units (NTU) — directly affects the safety of drinking water, the performance of water treatment systems, the condition of aquatic ecosystems, and the quality of food and beverage production. Regulators, engineers, and environmental scientists depend on reliable turbidity data to protect public health and maintain environmental standards. Lutron TU-2016 Turbidity Meter

Lutron Electronic Enterprise Co., Ltd. of Taiwan designed the TU-2016 to meet ISO 7027, the international standard for water quality turbidity measurement using infrared light at 850 nm. This wavelength reduces interference from sample colour and organic matter, so the meter captures true turbidity rather than a combined response to colour and cloudiness. The automatic dual-range design — 0.00 to 50.00 NTU and 50 to 1,000 NTU — means the instrument handles clean drinking water samples and turbid industrial effluent samples without any manual range switching. Lutron TU-2016 Turbidity Meter

Moreover, the Lutron TU-2016 Turbidity Meter reaches professionals across a wide spectrum of industries in Bangladesh. Municipal water authorities use it to verify treatment plant output. Environmental agencies deploy it for river and estuary monitoring. Food and beverage manufacturers use it for in-process quality control. Therefore, ASTZ Bangladesh stocks this instrument as a first-choice turbidity solution Lutron TU-2016 Turbidity Meter

Specifications Lutron TU-2016 Turbidity Meter

Parameter	Specification
Model	Lutron TU-2016
Instrument Type	Portable Handheld Nephelometric Turbidity Meter
Measuring Principle	90-degree nephelometric (ISO 7027)
Measurement Range	0.00 to 50.00 NTU (Low); 50 to 1,000 NTU (High) — Auto range
Resolution	0.01 NTU (0.00–49.99 NTU range); 1 NTU (50–1,000 NTU range)
Accuracy	±5% F.S. or ±0.5 NTU, whichever is greater
Light Source	Infrared LED, 850 nm wavelength
Detector	Photodiode
Display	Jumbo LCD, 41 mm × 34 mm
Display Sampling Time	Approximately 1 second
Response Time	Less than 10 seconds
Data Hold	Freezes display reading on demand
Memory Recall	Maximum and Minimum value storage and recall
Zero Function	Software zero offset (effective within ±2.0 NTU deviation)
Calibration Points	0 NTU and 100 NTU (two-point calibration)
Sample Volume Required	Minimum 10 mL per test
Circuit	Custom single-chip microprocessor LSI circuit
Power Supply	DC 1.5 V batteries (UM4 / AAA) × 6 pieces
Standby Current	Approximately 3.5 mA DC
Testing Current	Approximately 36 mA DC
Auto Power-Off	Approximately 10 minutes after last test (also manual off)
Operating Temperature	0°C to 50°C
Operating Humidity	Less than 85% R.H. (non-condensing)
Dimensions	155 mm × 76 mm × 62 mm (6.1 × 3.0 × 2.4 inches)
Weight	Approximately 320 g (including batteries)
Standard Compliance	ISO 7027, ISO-9001, CE, IEC1010

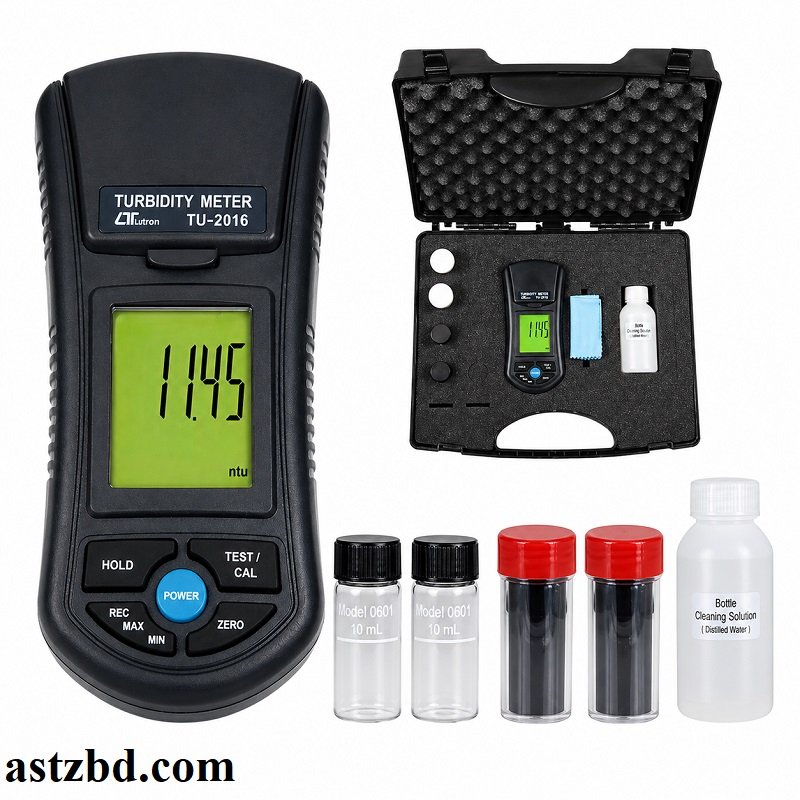

Kit Contents	Meter, 0 NTU calibration bottle (TU-0NTU), 100 NTU calibration bottle (TU-100NTU), 2× empty testing bottles (Bottle-061), clean cloth, distilled water solution, hard carrying case (CA-08)
Optional Accessories	AC-DC 9V power adapter; additional TU-0NTU, TU-100NTU standard solutions; empty testing bottles (0601)
Manufacturer	Lutron Electronic Enterprise Co., Ltd., Taiwan



Key Features Lutron TU-2016 Turbidity Meter

1. ISO 7027 Compliant Optical System — The 850 nm infrared LED and 90-degree nephelometric photodiode configuration meet the international standard for turbidity measurement, so test results carry full regulatory authority.
2. Automatic Dual-Range 0.00–1,000 NTU — The meter switches automatically between the 0.00–50.00 NTU low range and the 50–1,000 NTU high range, covering clean drinking water and highly turbid industrial samples in one instrument.
3. High Resolution of 0.01 NTU — In the low range (0.00–49.99 NTU), the meter resolves readings to 0.01 NTU, making it precise enough for potable water compliance testing.
4. Accuracy ±5% F.S. or ±0.5 NTU — The guaranteed accuracy specification ensures that results meet the tolerance requirements of water quality regulations and industrial process control standards.
5. 850 nm Infrared LED Light Source — The infrared wavelength minimises interference from sample color and dissolved organic compounds, delivering turbidity readings that reflect suspended particle concentration rather than color effects.
6. Jumbo 41 mm × 34 mm LCD Display — The large display presents readings clearly in direct sunlight and indoor laboratory conditions, reducing operator eye strain during high-volume testing sessions.
7. Data Hold Function — A single button press freezes the current reading on the display, so operators record the value without rushing or risking misreading a fluctuating screen.
8. Max/Min Memory Recall — The meter automatically records the highest and lowest readings during a test session, enabling operators to track turbidity variation over time without manual logging.
9. Two-Point Calibration (0 NTU and 100 NTU) — The factory-supplied calibration solutions allow users to verify and restore instrument accuracy at two key points on the measurement range.
10. Auto Power-Off with 10-Minute Timer — The automatic shutdown feature conserves battery life during field use, extending operation from a single set of six AAA batteries across many test sessions.

Applications Lutron turbidity meter price BD

1. Municipal Drinking Water Treatment: Water treatment plant operators use the TU-2016 to monitor filter effluent and treated water turbidity before distribution, ensuring compliance with Bangladesh drinking water standards and WHO guidelines.
2. Wastewater & Effluent Monitoring: Environmental engineers measure turbidity in industrial and municipal wastewater effluent to verify that discharge meets Department of Environment (DoE) regulatory limits.
3. River, lake & Reservoir Monitoring: Environmental scientists and government agencies deploy the meter for surface water quality surveys on Bangladesh’s major rivers, haors, and water supply reservoirs.
4. Swimming Pool & Recreational Water Quality: Pool operators and health inspectors use the TU-2016 to confirm that pool water clarity meets public health standards before opening facilities to bathers.
5. Food & Beverage Production Quality Control: Food technologists test beverages, process water, and ingredient solutions to ensure product clarity meets consumer and regulatory quality specifications.
6. Pharmaceutical Water Quality Testing: Pharmaceutical manufacturers use turbidity measurement to verify that purified water and water-for-injection meet pharmacopoeia clarity requirements. Lutron TU-2016 Turbidity Meter
7. Aquaculture & Fish Farm Water Management: Fish farm operators monitor pond and tank water turbidity to maintain healthy conditions for aquatic species and optimise feeding and aeration management. Lutron TU-2016 Turbidity Meter
8. Industrial Process Water Monitoring: Engineers in textile, paper, chemical, and power generation industries test cooling water, process water, and boiler feed water turbidity to protect equipment and product quality.
9. Environmental Impact Assessment: Consultants and government agencies measure turbidity upstream and downstream of construction sites, dredging operations, and industrial facilities to quantify environmental impact.
10. Academic Research & Laboratory Teaching: University lecturers and researchers use the TU-2016 for undergraduate environmental engineering, water chemistry, and aquatic science coursework and field studies.

Who Uses This NTU turbidity meter ISO 7027

1. WASA & Municipal Water Authorities
2. Department of Environment (DoE) Bangladesh
3. Food & Beverage Manufacturers
4. BWDB & Water Resource Engineers
5. Environmental Consulting Firms
6. Pharmaceutical Companies
7. Aquaculture & Fish Farm Operators
8. Universities & Engineering Colleges (BUET, CUET, RUET, BAU)
9. Public Health & Sanitation Departments
10. Swimming Pool Operators & Health Inspectors
11. Industrial Plant Engineers
12. Independent Water Quality Consultants



Frequently Asked Questions (FAQ) digital turbidity meter Bangladesh

Q1. What does NTU stand for, and what range does the Lutron TU-2016 cover?

NTU stands for Nephelometric Turbidity Unit — the standard unit that quantifies water cloudiness by measuring how much a water sample scatters an incident light beam at 90 degrees. The Lutron TU-2016 covers an automatic dual range of 0.00 to 50.00 NTU in the low range and 50 to 1,000 NTU in the high range.

Q5. How much sample volume does the TU-2016 require per test?

The meter requires a minimum of 10 mL of sample per test. Fill the testing bottle to the marked level, align the white marks on the bottle and the sample chamber, and insert the bottle fully before pressing the TEST button. Always rinse the testing bottle twice with distilled water between different samples to prevent cross-contamination from the previous measurement. Lutron TU-2016 Turbidity Meter

Q9. Can universities and government laboratories issue purchase orders to ASTZ for the TU-2016?

Yes. ASTZ Bangladesh accepts institutional purchase orders from universities, government ministries, water authorities, environmental agencies, food safety departments, and research institutions. The ASTZ procurement team issues formal quotations, pro-forma invoices, and supply agreements that satisfy institutional financial and audit requirements

Q12. What is the warranty and return policy for the Lutron TU-2016 from ASTZ?

The Lutron TU-2016 carries the manufacturer warranty against defects in materials and workmanship. Customers who receive a damaged or defective unit contact ASTZ Bangladesh within 7 days of receipt to initiate a warranty claim or replacement. ASTZ also provides after-sales technical support for calibration guidance, operational questions, and accessory sourcing throughout the meter’s service life. Contact the ASTZ customer support team by phone or email with the order reference and a description of the issue.
