Description
SH-HZD Digital Homogenizer Price in BD
SH-HZD Digital Homogenizer price in BD is ৳2,10,000 at astzbd.com, putting a genuine Korea-made high-shear homogenizer within reach of pharmaceutical, food, and research labs that need stepless speed control instead of fixed gear stages. Anyone comparing a Digital Homogenizer price in BD listing against a basic fixed-speed unit will notice the difference the moment they need to fine-tune shear intensity mid-batch.

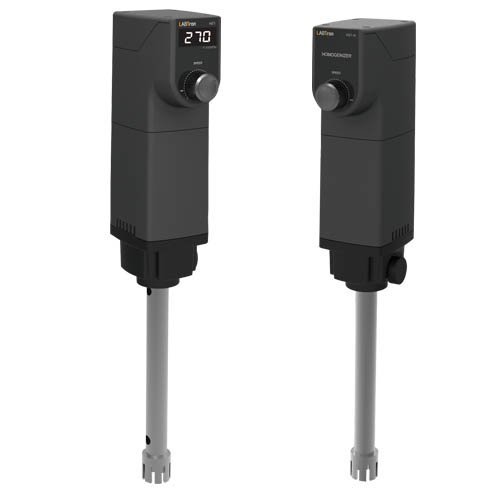

SH-HZD Digital Homogenizer – Overview
Homogenizing a sample at the wrong speed either under-processes it or wastes time overshooting what the formulation needs. The SH-HZD Digital Homogenizer solves that with stepless speed control across its full 2,000 to 27,000 rpm range, so you dial in the exact shear force a batch calls for instead of jumping between fixed gear settings. It’s built for daily bench use, not the occasional sample prep session.
SH-HZD Digital Homogenizer Full Specification
| Parameter | Specification |
|---|---|
| Speed Range | 2,000 to 27,000 rpm (without load) |
| Speed Control | Stepless |
| Maximum Volume (H2O) | 2,500 ml |
| Motor Rating (Input/Output) | 400 / 300 W |
| Power Consumption | 400W |
| Display | 3 Digit FND |
| Safety Devices | Over Heat Protector |
| Permissible Temp. & Humidity | 5°C–40°C, <80% |
| Usable Dispersing Tools | Ø8mm “SH-HZ1008”, Ø10mm “SH-HZ1010”, Ø18mm “SH-HZ1018”, Ø25mm “SH-HZ1025” |
| Material | ABS & Aluminum body; Stainless Steel (#304) tool |
| Extension Arm Size | Ø12.7 × 250mm (0.5 × 9.84″) |
| Power Supply | 1 Phase, AC 120V 60Hz or AC 230V 50/60Hz |
| Country of Origin | Korea |
Accessories:
Model Name |
Description |
SH-OSSR010 |
Standard Plate Stand, for Overhead Stirrer and Homogenizer, 25x37cm Plate, with Rod and Silicon Pad |
SH-OSHC010 |
Clamp for Overhead Stirrers and Homogenizers, up to Ø23mm Rod |
Model Name |
Description |
SH-HZ1008 |
Homogenizer Tool, Rotor Φ6.1, Stator Φ8, 1~50 ml |
SH-HZ1010 |
Homogenizer Tool, Rotor Φ7.5, Stator Φ10, 1~100 ml |
SH-HZ1018 |
Homogenizer Tool, Rotor Φ12.7, Stator Φ18, 10~1000 ml |
SH-HZ1025 |
Homogenizer Tool, Rotor Φ17, Stator Φ25, 50~2500 ml |
Digital Homogenizer – Key Features
2,000–27,000 RPM Stepless Speed Control
Instead of switching between fixed gear stages, the stepless dial lets you land on the exact rpm a formulation needs, which matters when a small speed difference changes emulsion texture or particle size.
Interchangeable Dispersing Tools (8/10/18/25mm Stators)
Four stator sizes cover everything from small-volume lab samples to larger batch runs, so one unit handles a wider range of sample volumes than a fixed-probe homogenizer.
Overheat Protection & 3-Digit Digital Display
The digital display shows the running speed directly instead of an estimated dial position, while overheat protection shuts the motor down before sustained high-speed runs cause damage.
Dual Voltage Power Supply (120V/230V)
Compatibility with both 120V and 230V supply means it runs on standard Bangladeshi mains power without needing a separate voltage converter.
SH-HZD Digital Homogenizer vs DLAB D-500 – Comparison Table
| Feature | SH-HZD Digital Homogenizer | DLAB D-500 Homogenizer |
|---|---|---|
| Speed Range | 2,000–27,000 rpm, stepless | 10,000–30,000 rpm, 6 fixed stages |
| Max Working Volume | 2,500 ml | 10–40,000 ml (with optional generators) |
| Max Viscosity | Confirm before publishing | 10,000 mPa·s |
| Shaft/Tool Material | Stainless Steel #304 | SS 316L stainless steel & PTFE |
| Motor Power | 400W input / 300W output | Confirm before publishing |
| Safety | Overheat protector | Overload protection, smooth motor start |
| Best For | Small-to-mid volume batches needing precise stepless speed control | Larger volume, higher-viscosity samples up to 40L |
Both are available at astzbd.com. Choose the SH-HZD when your work stays within a 2,500ml batch size and you need fine stepless speed control; choose the DLAB D-500 Homogenizer when you’re processing larger volumes or higher-viscosity samples up to 10,000 mPa·s.
Digital Homogenizer Price in BD – What Affects the Cost
Motor power, speed range, and the number of interchangeable dispersing tools included all factor into where a digital homogenizer lands on price. The SH-HZD’s stepless control and four-stator compatibility push it above basic fixed-speed units, but well below larger-capacity systems built for tens of liters per batch.
Why Buy Genuine SH-HZD from astzbd.com
astzbd.com supplies the genuine Korea-made SH-HZD Digital Homogenizer with direct after-sales support, so a stator replacement or motor issue doesn’t mean shipping the unit back overseas.
Who Should Buy the SH-HZD Digital Homogenizer?
Pharmaceutical & Biotech Labs
Formulation work often needs precise, repeatable shear speeds across small batch sizes, which the stepless rpm control delivers consistently.
Food & Beverage R&D
Testing emulsion stability and texture across small trial batches benefits from being able to fine-tune speed rather than jumping between fixed gear stages.
Cosmetic Formulation Labs
Cream and lotion formulation depends on getting particle size and emulsion consistency right, which stepless speed control makes easier to dial in.
University Research Labs
Teaching and research labs benefit from a single unit that covers multiple stator sizes instead of needing separate homogenizers for different sample volumes.
How to Use the SH-HZD Digital Homogenizer
- Select and attach the appropriate stator size (8mm, 10mm, 18mm, or 25mm) for your sample volume
- Immerse the dispersing tool into the sample to the recommended depth
- Start at a lower rpm and gradually increase using the stepless dial to reach your target speed
- Monitor the 3-digit display to confirm the running speed matches your protocol
- Run for the required duration, watching for the overheat indicator on extended high-speed runs
- Power down, remove the stator, and clean it thoroughly before storage or the next sample
SH-HZD Digital Homogenizer FAQ
What is the price of the SH-HZD Digital Homogenizer in BD?
SH-HZD Digital Homogenizer price in BD is ৳2,10,000 at astzbd.com.
What is the speed range of the SH-HZD Digital Homogenizer?
It runs from 2,000 to 27,000 rpm without load, with stepless speed control rather than fixed stages.
What is the maximum sample volume it can handle?
The maximum volume for water-based samples is 2,500 ml.
Does the SH-HZD Digital Homogenizer work on standard Bangladeshi power supply?
Yes, it supports both AC 120V 60Hz and AC 230V 50/60Hz single-phase power.
How does the SH-HZD compare to the DLAB D-500?
The SH-HZD offers stepless speed control up to 27,000 rpm for batches up to 2,500ml, while the DLAB D-500 reaches higher speeds and volumes up to 40,000ml for larger or more viscous samples.
ADVANCE SCIENCE & TECHNOLOGY ZONE
1st floor shop #13 kader tropical
10 shaid nazrul islam road, hatkhola, tikatoly Dhaka-1203
E-mail: astzbd@gmail.com, Website: WWW.ASTZBD.COM
Cell: +88 01329100999
+88 01329100998
