Description

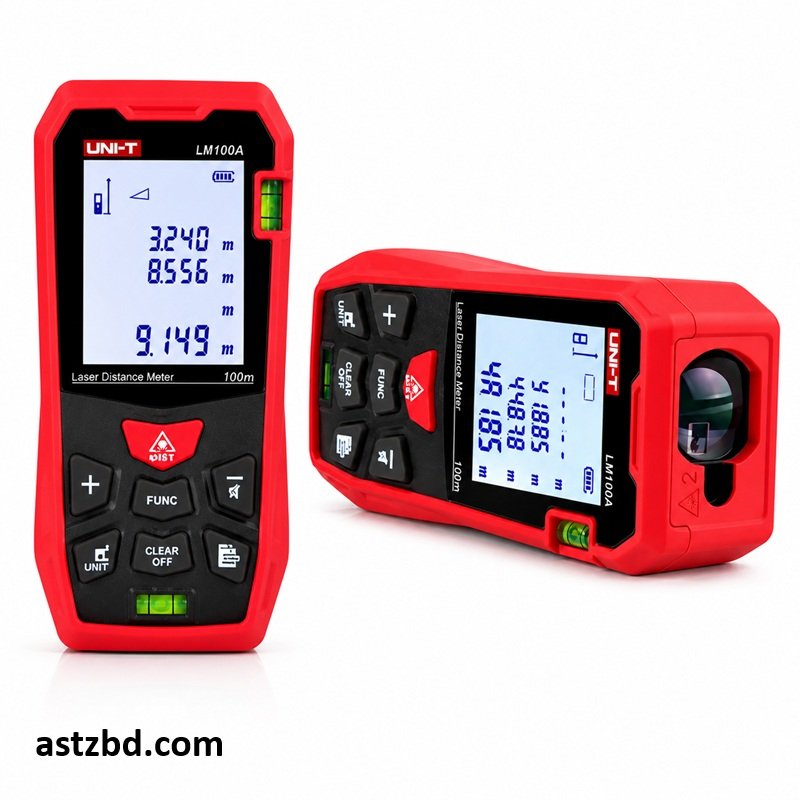

Introduction UNI-T Laser Distance Meter LM100A
The UNI-T Laser Distance Meter LM100A brings professional-grade measuring accuracy to your worksite. This device replaces bulky measuring tapes with a single laser beam that captures distance, area, and volume readings within seconds. Contractors rely on this tool for fast property assessments, while interior designers use it for accurate room planning. The LM100A stores 99 groups of data, so users can log multiple measurements without re-entering values. astzbd stocks this device for customers across Bangladesh who need dependable, factory-tested measuring equipment.
SPECIFICATIONS UNI-T Laser Distance Meter LM100A
| Specification | Detail |
|---|---|
| Model | UNI-T LM100A |
| Measuring Range | 0.05m – 100m (328 ft) |
| Accuracy | ±2mm (±(2mm + 5×10⁻⁵D)) |
| Min. Display Unit | 0.001m |
| Measurement Units | m / ft / in |
| Measurement Functions | Distance, Area, Volume, Addition, Subtraction, Pythagoras (Indirect) |
| Laser Class | Class 2 |
| Laser Type | 630–670nm, <1mW |
| Data Storage | 99 groups |
| Display Type | 2.0-inch Backlit LCD |
| Measurement Basis | Front / Rear Switchable |
| Auto Power Off | 3 minutes without operation |
| Auto Laser Off | 30 seconds without operation |
| Leveler | Physical horizontal and vertical leveler |
| Power Supply | 1.5V AAA battery (LR03) × 2 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Product Size | 122mm × 52mm × 29.5mm |
| Product Color | Red and Grey |
| Certifications | CE, UKCA |
| Standard Accessories | Carrying pouch, batteries, user manual |
Key Features
- 100-Meter Measuring Range: The device captures distances up to 100 meters (328 feet) with a single laser
- ±2mm Accuracy: Precision engineering keeps every reading within ±2mm, meeting professional construction standards.
- Area and Volume Calculation: The meter computes area and volume automatically, eliminating manual math.
- Addition and Subtraction Modes: Users combine or subtract multiple readings directly on the device.
- Pythagoras Function: The tool calculates indirect measurements for heights and distances that are hard to reach.
- 99-Group Data Storage: Operators save up to 99 measurement sets for later reference.
- Backlit LCD Display: A 0-inch screen shows clear numerals, even in low-light job sites.
- Physical Leveler: Built-in horizontal and vertical levelers improve alignment accuracy.
- Auto Power-Off: The device conserves battery life by shutting down after 3 minutes of inactivity.
- Compact, Ergonomic Body: A lightweight 122mm x 52mm x
29.5mm frame fits comfortably in one hand.
Applications UNI-T Laser Distance Meter LM100A
- Interior and exterior design projects
- Residential and commercial construction
- Real estate property assessment
- Factory floor and warehouse supervision
- Engineering inspection and quality control
- Furniture and space planning
- Land surveying and site layout
- HVAC and electrical installation planning
Who Uses This UNI-T Laser Distance Meter LM100A
- Civil Engineers: measure site dimensions and verify construction tolerances quickly.
- Interior Designers: calculate room area and volume for furniture and material planning.
- Contractors: confirm wall lengths, ceiling heights, and floor space during renovation projects.
- Real Estate Agents: verify property dimensions before listing or
- Factory Supervisors: track floor layouts and equipment placement in industrial facilities.
- DIY Homeowners: plan renovations, flooring, or paint coverage without a measuring tape.
- Surveyors: capture indirect measurements using the Pythagoras function on uneven terrain.
Frequently Asked Questions (FAQ) UNI-T Laser Distance Meter LM100A
Q1: What is the maximum measuring range of the UNI-T Laser Distance Meter LM100A?
The device measures distances up to 100 meters (328 feet) with a single laser pulse.
Q2: How accurate is the LM100A?
The meter maintains ±2mm accuracy across its full measuring range, which meets professional construction standards.
Q3: Does the LM100A calculate area and volume?
Yes, the device automatically calculates area and volume based on captured distance readings.
Q4: How many measurements can the device store?
The LM100A stores up to 99 groups of measurement data for later review.
Q5: What type of batteries does the LM100A use?
The device runs on two 1.5V AAA batteries (LR03), which are included with purchase.
Q6: Is the laser safe for regular use?
Yes, the LM100A uses a Class 2 laser (630–670nm, <1mW), which is safe for standard measuring tasks.
Q7: Can the LM100A measure indirect heights or distances?
Yes, the built-in Pythagoras function calculates indirect measurements for hard-to-reach points.
Q8: Does astzbd provide warranty support for this device?
Yes, astzbd ships every unit with manufacturer warranty coverage and dedicated customer support.
Why Buy From astzbd
- astzbd supplies genuine UNI-T products with verified authenticity and full manufacturer warranty.
- Every LM100A unit ships with original accessories and a tested battery.
- Our support team assists customers with setup questions and troubleshooting after purchase.
- Fast delivery across Bangladesh ensures your project timeline stays on track.
- Competitive pricing and secure payment options make astzbd a trusted source for measuring instruments.
