Description

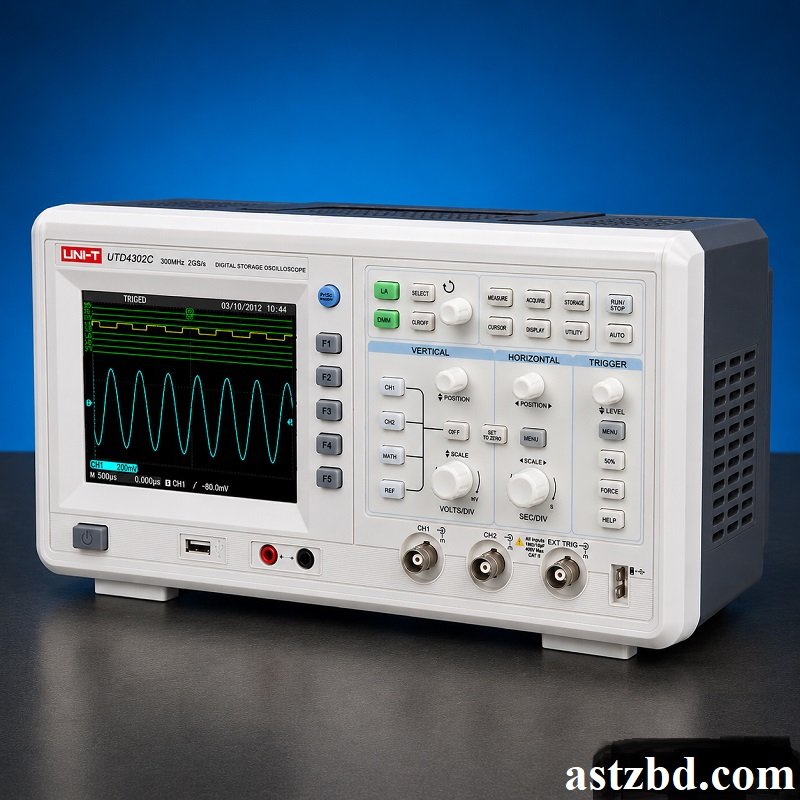

UNI-T UTD4302C 300MHz Digital Storage Oscilloscope – Price in Bangladesh
The UNI-T UTD4302C 300MHz Oscilloscope Price in Bangladesh is ৳1,80,000 at astzbd.com, positioning it as one of the most capable high-bandwidth digital storage oscilloscopes available locally for engineers who need precision beyond entry-level tools. If you’ve been comparing the UNI-T UTD4302C 300MHz Digital Oscilloscope against other bench units in the market, this guide breaks down its full specification, real-world use cases, and why it justifies the investment over cheaper alternatives. You can also check Tektronix’s general oscilloscope buying reference for background on bandwidth and sampling rate fundamentals.
UNI-T UTD4302C Overview – High-Bandwidth Oscilloscope for Advanced Testing
Most technicians start with a 50MHz or 100MHz scope, but once you’re debugging high-speed digital circuits, RF signals, or fast switching power supplies, bandwidth limitations start costing you accuracy. The UTD4302C is built for that next tier of work — offering 300MHz bandwidth with dual-channel input, deep memory, and the kind of waveform detail that lower-end scopes simply can’t capture.Anyone researching the UNI-T UTD4302C 300MHz Oscilloscope Price in Bangladesh before buying will find this model consistently ranked among the top choices for advanced signal work.
UNI-T UTD4302C Full Specification
| Category | Parameter | Specification |
|---|---|---|
| Vertical System | Bandwidth | 300 MHz |
| Vertical System | Channels | 2 Analog Channels |
| Vertical System | Vertical Sensitivity | 2 mV/div – 5 V/div |
| Vertical System | Rise Time | ≤ 1.8 ns |
| Vertical System | Max Input Voltage | 300 V (CAT II) |
| Horizontal System | Real-Time Sample Rate | 2 GSa/s (single) / 1 GSa/s (dual) |
| Horizontal System | Memory Depth | 1,024 k points |
| Horizontal System | Time Base Range | 1 ns/div – 50 s/div |
| Trigger System | Trigger Modes | Edge, Pulse, Video, Slope, Alternate |
| Display | Display Type | 5.7-inch Color LCD (TFT) |
| Display | Resolution | 320 × 240 pixels |
| Math & Measurements | Auto Measurements | 27 types |
| Interfaces | Interfaces | USB, LAN, GPIB, Pass/Fail |
| General | Weight | 3.8 kg (net) |
| General | Warranty | 24 months |
These numbers place the UNI-T UTD4302C 300MHz Digital Oscilloscope well above most oscilloscopes available in the local market today.
Key Features of UNI-T UTD4302C
300MHz Bandwidth for High-Frequency Signal Analysis
Before comparing specs, it helps to understand exactly what makes the UNI-T UTD4302C 300MHz Digital Oscilloscope stand out from typical bench units sold locally. At 300MHz, this UNI-T UTD4302C 300MHz Digital Oscilloscope captures fast-edge transitions and high-frequency noise that would appear distorted or invisible on a 50MHz–100MHz unit, making it suitable for RF work and high-speed digital debugging.
Dual Channel Input for Complex Circuit Debugging
Two analog channels let you compare signal points simultaneously — essential when tracing timing relationships across a multi-stage circuit rather than probing one point at a time.
High Real-Time Sampling Rate & Deep Memory
A real-time sample rate of 2 GSa/s (single channel) with 1,024k memory points means the scope can capture long waveform records without losing resolution, useful for catching intermittent glitches that only show up occasionally.
Large TFT Display with FFT & Math Functions
The 5.7-inch color TFT screen makes waveform reading comfortable during long lab sessions, while built-in FFT converts time-domain signals into frequency-domain data — handy for spotting harmonic distortion or unwanted noise sources.
Multiple Trigger Modes (Edge, Pulse, Video, Slope)
Edge, pulse, video, and slope triggering give you precise control over exactly which part of a signal the scope captures, which matters when you’re isolating a specific fault condition in a busy waveform.
USB, LAN & GPIB Connectivity
USB, LAN, and GPIB interfaces let you transfer captured waveforms directly to a computer for documentation, reporting, or remote instrument control in a lab environment.
Why Choose the UNI-T UTD4302C Over Entry-Level Oscilloscopes?
A 50MHz or 100MHz scope handles basic Arduino debugging and simple audio circuits fine, but it starts showing rounded, inaccurate edges once signal frequencies climb. The UTD4302C’s 300MHz bandwidth keeps waveform integrity intact at frequencies where cheaper scopes visibly distort the signal — which matters directly when you’re diagnosing a fault rather than guessing at one.This is exactly why the Digital Oscilloscope Price in Bangladesh for high-bandwidth models tends to run higher than entry-level units — you’re paying for measurement accuracy that doesn’t degrade at speed.
UTD4302C vs Entry-Level Models – Which One Fits Your Work?
| Feature | UTD4302C | Entry-Level 100MHz Scope |
|---|---|---|
| Bandwidth | 300MHz | 100MHz |
| Sample Rate | 2 GSa/s | ~1 GSa/s |
| Best For | RF, industrial, advanced R&D | General repair, student labs |
| Price Range (BD) | ৳1,80,000 | ~৳38,000–45,000 |
If your work involves high-frequency RF signals, industrial diagnostics, or advanced product development, the UTD4302C’s extra bandwidth pays for itself in accuracy. For general electronics repair or university coursework, an entry-level model covers most day-to-day needs at a fraction of the cost — browse our full Digital Oscilloscope Price in Bangladesh category to compare both tiers.
UNI-T UTD4302C Price in Bangladesh
Many buyers specifically search for the UNI T Digital Oscilloscope price in Bangladesh before finalizing their lab or workshop budget, and astzbd.com keeps this listed transparently. The current UNI T Digital Oscilloscope price in Bangladesh for the UTD4302C model is ৳1,80,000 at astzbd.com — reflecting its position as a professional-grade, high-bandwidth instrument rather than an entry-level unit.
What Affects the Price (Bandwidth, Brand, Sampling Rate)
Bandwidth is the single biggest price driver in oscilloscopes — every step up from 100MHz to 200MHz to 300MHz adds cost due to more advanced internal components. Sampling rate and memory depth add further to the price, since capturing more detail per second requires faster processing hardware.
Why Buy Genuine UNI-T Oscilloscopes from astzbd.com
astzbd.com stocks genuine UNI-T instruments with full manufacturer backing, so you’re not risking a ৳1,80,000 purchase on an unverified import with no warranty support. Every unit comes with a documented 24-month warranty.
Who Should Buy the UNI-T UTD4302C?
Understanding who benefits most from this investment makes the UNI-T UTD4302C 300MHz Oscilloscope Price in Bangladesh easier to justify against cheaper alternatives.
Electronics & RF Engineers
Accurate high-frequency signal capture is non-negotiable when working with RF circuits, and 300MHz bandwidth gives the headroom needed for reliable measurements.
Industrial Maintenance Technicians
Diagnosing fast switching faults in industrial control systems requires a scope that won’t distort the very signal you’re trying to troubleshoot.
University Research & Advanced EEE Labs
Research-level coursework often pushes beyond what basic teaching scopes can handle, making the UTD4302C a practical fit for advanced labs.
Product Development & Embedded Systems Teams
Teams developing new hardware benefit from deep memory and dual-channel capture when validating timing across multiple circuit stages at once.
Included Accessories in the Box
The UTD4302C ships with matched oscilloscope probes, a UT-P06 logic analyzer probe, USB cable, power cable, and user documentation — everything needed to get the unit running out of the box.
How to Use the UNI-T UTD4302C – Quick Setup Guide
- Connect the included probes to the appropriate channel inputs
- Ground the probe clip securely to your circuit’s ground reference
- Power on the unit and press Auto to let it detect signal parameters
- Adjust volts/division and time/division for a clear waveform view
- Set trigger mode (Edge, Pulse, Video, or Slope) based on what you’re isolating
- Use FFT or math functions if frequency-domain analysis is needed
UNI-T UTD4302C FAQ
What is the bandwidth of the UTD4302C oscilloscope?
It offers 300MHz bandwidth, suitable for high-frequency signal analysis beyond what entry-level scopes can capture accurately.
How many channels does this model have?
It comes with 2 analog channels, allowing simultaneous comparison of two signal points in a single circuit.
Who is this model best suited for?
RF engineers, industrial maintenance technicians, university research labs, and embedded systems teams working with high-frequency or complex signals.
Can the UTD4302C be connected to PC software?
Yes, it supports USB, LAN, and GPIB connectivity for transferring captured waveforms to a computer for further analysis and documentation.
What warranty period is available?
Every unit purchased from astzbd.com comes with a 24-month manufacturer-backed warranty.
Warranty & After-Sales Support (astzbd.com)
Every UNI-T UTD4302C unit sold through astzbd.com is genuine stock backed by a 24-month official warranty and dedicated after-sales support, giving you confidence in a purchase at this price point.Whether you’re comparing specs or checking the Digital Oscilloscope Price in Bangladesh across multiple sellers, astzbd.com remains a reliable source for genuine UNI-T instruments.
